XHF Heat Shrink Tubing Roll 1-1/2" x 8 ft — 3:1 Marine-Grade Adhesive-Lined, Waterproof Insulation

This 8‑foot roll of XHF heat shrink tubing combines a durable double‑wall construction with a hot‑melt adhesive liner to protect wires, solder joints, and cable harnesses from moisture, corrosion, and abrasion. With a 3:1 shrink ratio, the tube reduces to one‑third its original diameter for a tight, conforming fit over irregular shapes and repairs. Rated for marine environments and designed for easy activation with common heat sources, it’s a practical solution for DIYers and professionals who need reliable insulation and sealing.

How does the adhesive‑lined double wall protect electrical connections?

The outer heat‑shrink layer provides mechanical protection and electrical insulation while the inner hot‑melt adhesive flows when heated to form a waterproof, corrosion‑resistant barrier. Together they seal gaps, exclude water and contaminants, and add strain relief at termination points.

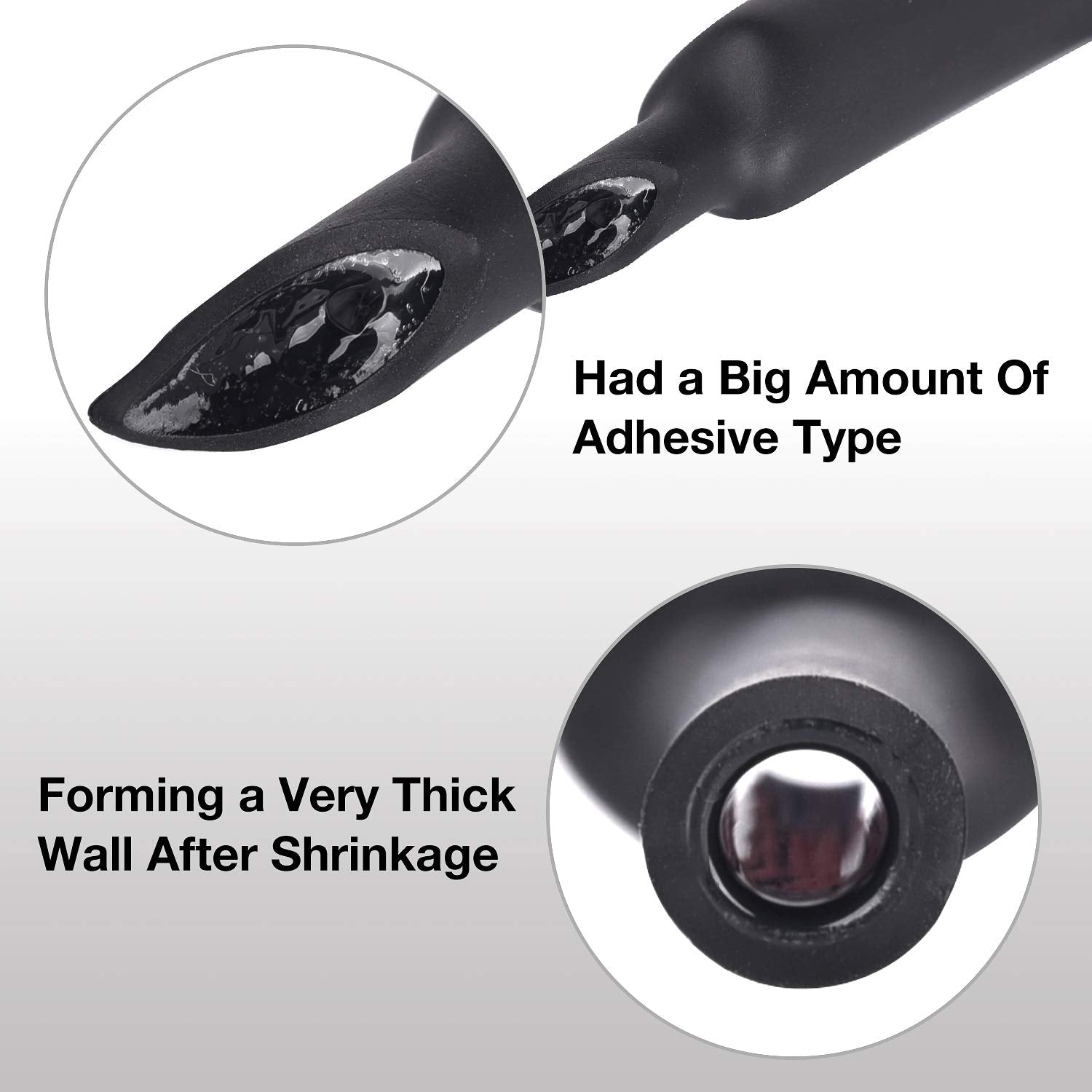

• Outer polyolefin wall resists abrasion and high temperatures.
• Inner rubber adhesive melts to bond to wires and solder joints.

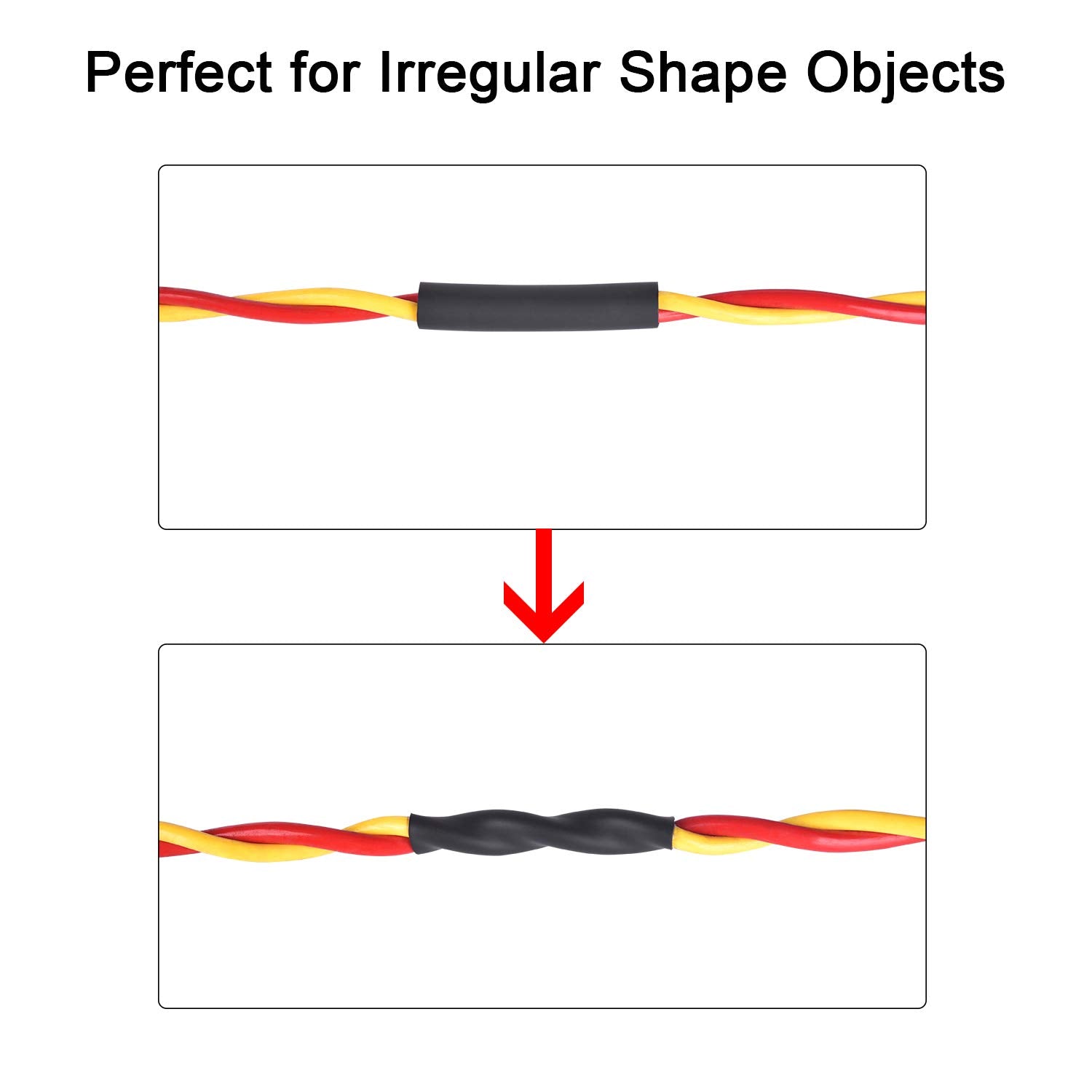

• 3:1 shrink ratio ensures tight conformity over uneven shapes.
• Designed for oil‑proof and anti‑aging performance in harsh conditions.

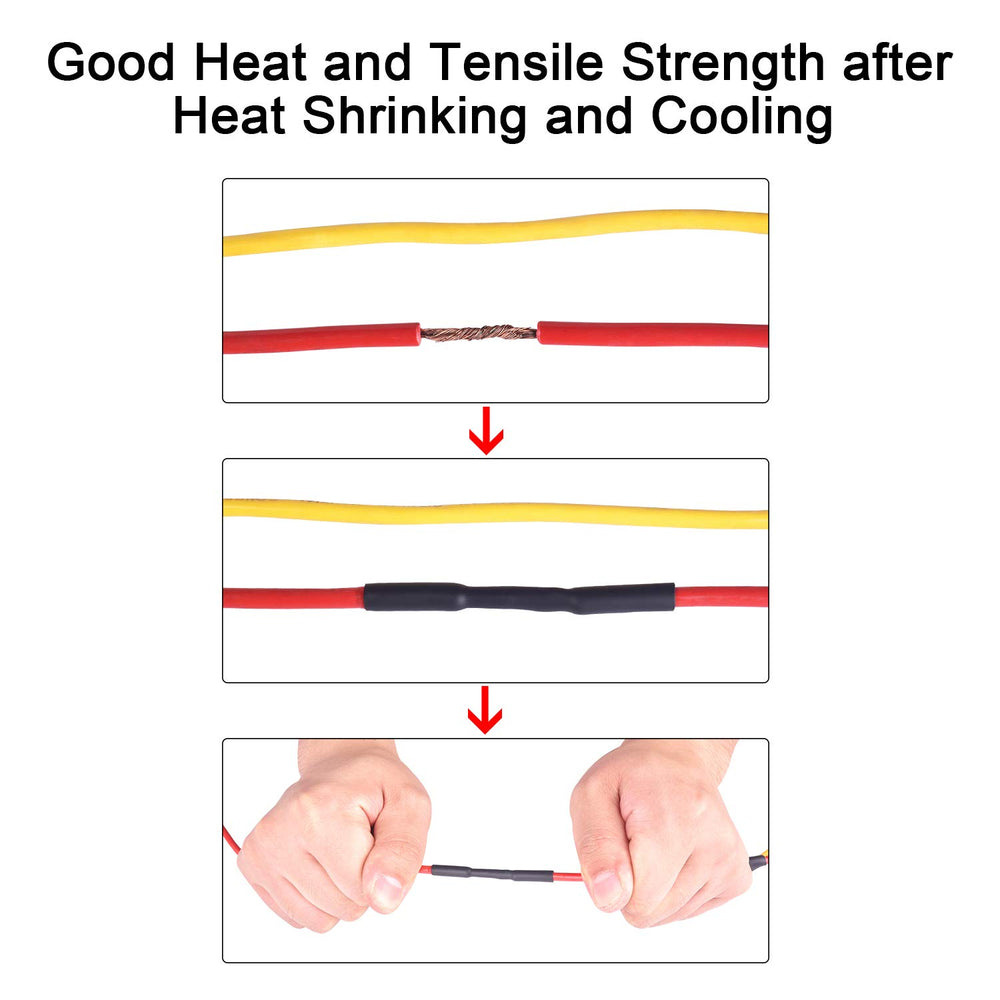

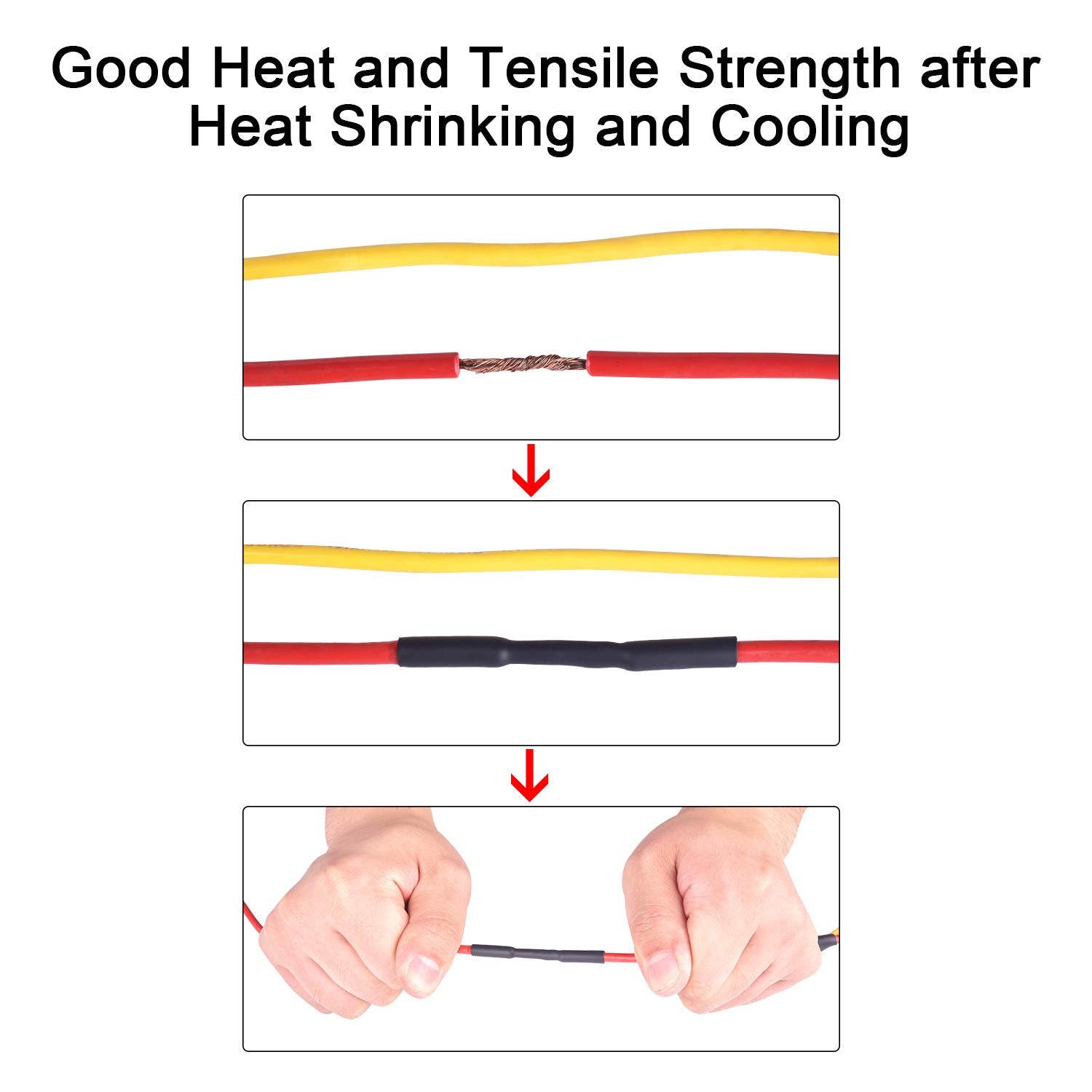

What heat sources work and how fast does it shrink?

Activation is straightforward: use a heat gun for the cleanest, fastest result, or a lighter/candle for small repairs with care. The tube begins to collapse quickly as the adhesive softens; final sealing occurs once the adhesive flows and the outer wall fully conforms.

• Recommended: hot air gun for even, controllable heat.
• Alternate: lighter or small torch for spot repairs (use cautiously).
• Shrink ratio 3:1 — reduces to roughly one‑third the original diameter.
• Allow adhesive to cool and set before stressing the connection.

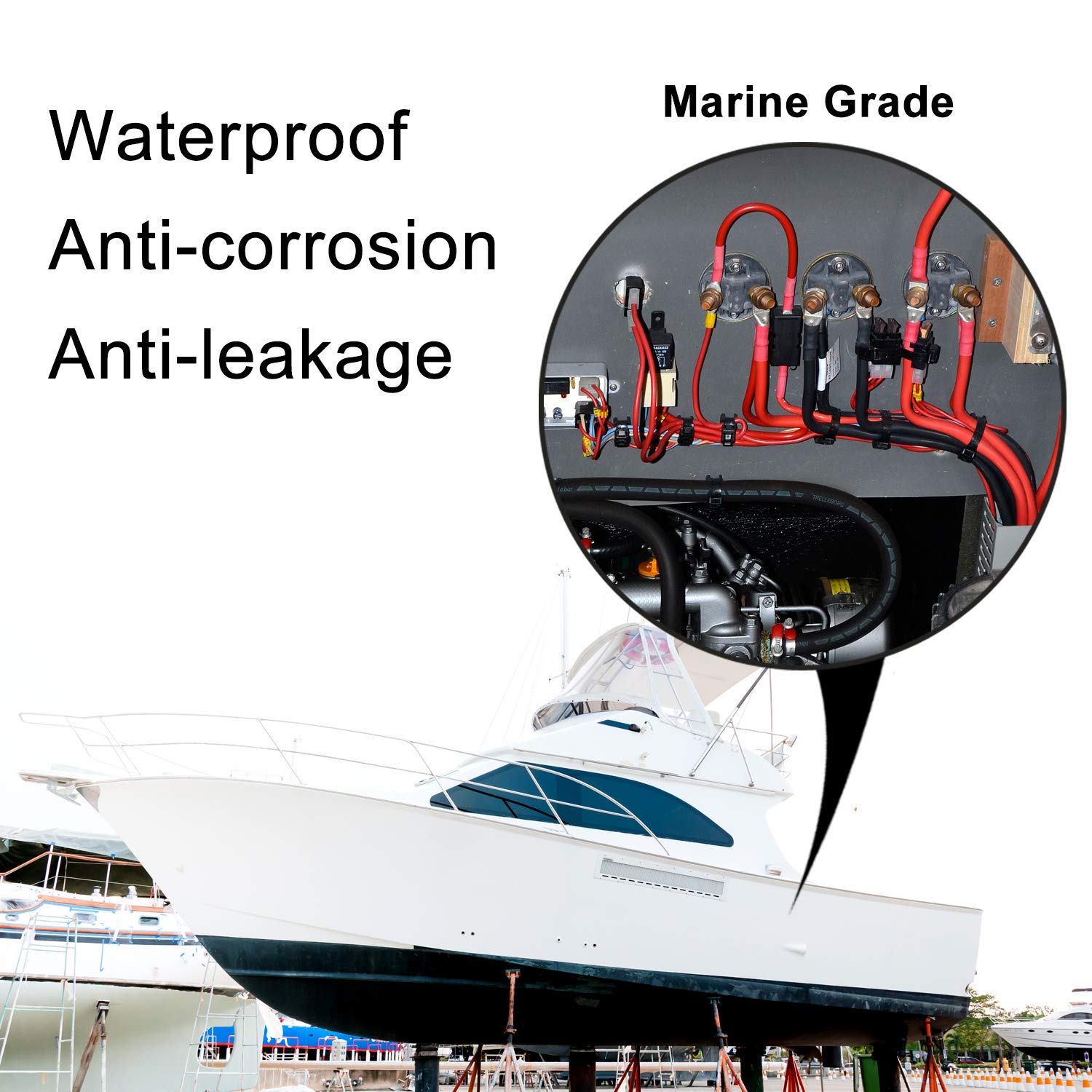

Can I use this tubing in marine and industrial environments?

Yes — the XHF tubing is formulated for marine and industrial use with oil‑resistant and corrosion‑resistant properties. It’s suitable for protecting exposed splices, harnesses, and terminals where moisture, salt, or mechanical wear are concerns.

• Marine‑grade adhesive liner resists saltwater intrusion.
• Good electrical insulation and high‑temperature tolerance.
• Anti‑aging compound resists cracking and loss of elasticity.
• Works on wires, solder joints, terminals, and small components.

How do I choose the right size and what are the alternatives?

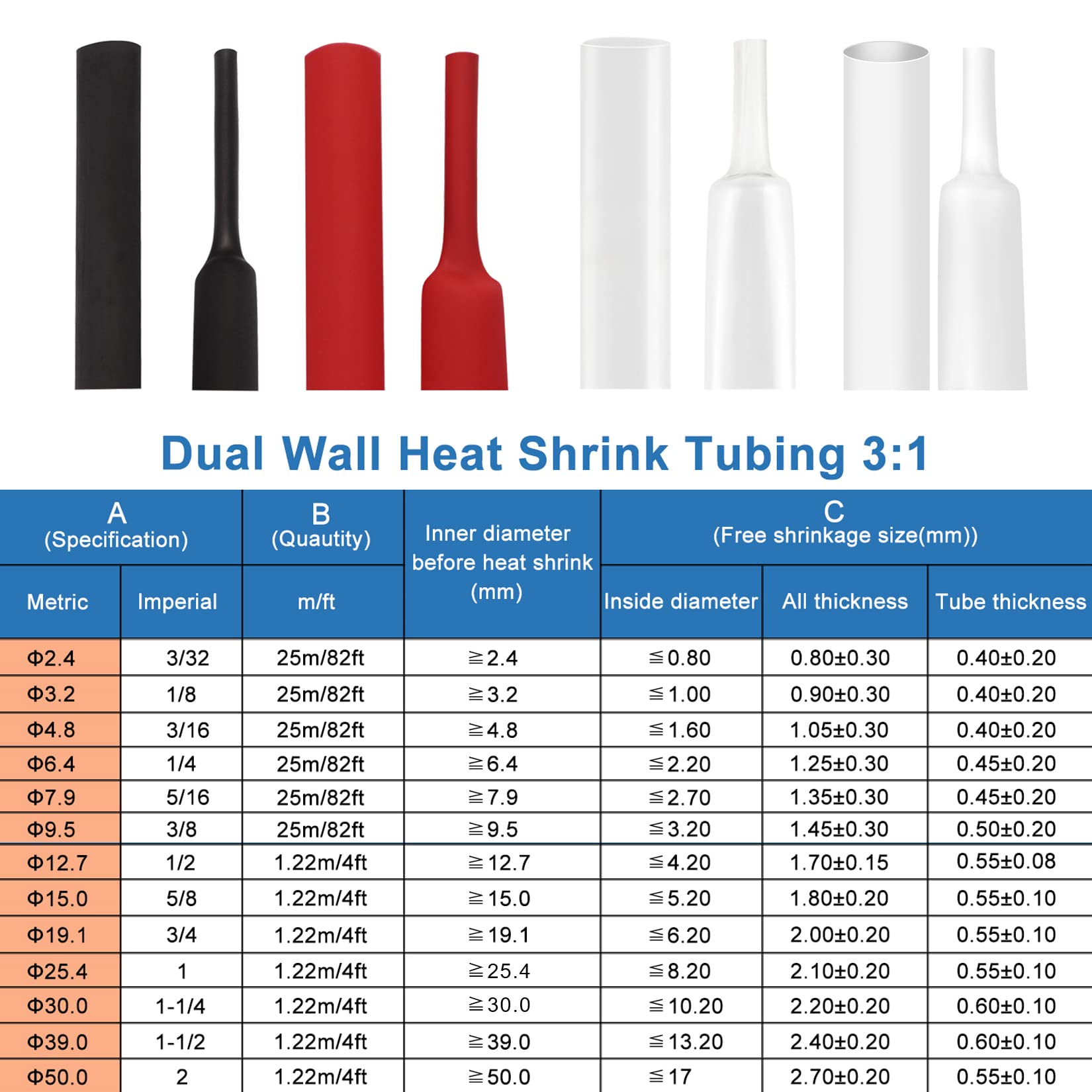

This roll is 1‑1/2 inch (nominal) before shrink, which suits larger splices and cable bundles then reduces to about one‑third when heated. XHF also offers other shrink ratios (2:1 and 4:1) and multiple diameters if you need closer fits or greater expansion range.

• This product: 1‑1/2" nominal diameter, 8 ft length, 3:1 shrink ratio.
• Choose 2:1 if less diameter change is needed; 4:1 for more expansion.
• Measure largest point of the item to be covered before selecting size.
• Trim to length before heating for neat, efficient application.

Who this is for: technicians, boat owners, automotive DIYers, and electrical installers who need a reliable, waterproof, oil‑resistant seal for splices, harnesses, and exposed wiring. It’s ideal for field repairs, maintenance work in corrosive environments, and anyone who wants a long‑lasting insulating solution that’s easy to apply with basic heating tools.
