SURAIELEC Wireless Light Switch Kit with Receiver - 15A Inline Relay, 100ft Range, RF Remote

SURAIELEC Wireless Light Switch Kit lets you add remote-controlled wall switches and a compact receiver to existing lights without running new wires.

If you want remote control for lamps, ceiling lights, or fixtures without cutting into walls or replacing bulbs, this kit provides a practical RF-based solution. The system pairs a battery-powered wall-style transmitter or handheld remote with a small relay receiver that installs inline with the fixture power. It supports up to 15A (1875W) loads, uses dynamic pairing to avoid interference, and works up to about 100 feet through typical home barriers.

How do I install the SURAIELEC kit without rewiring my walls?

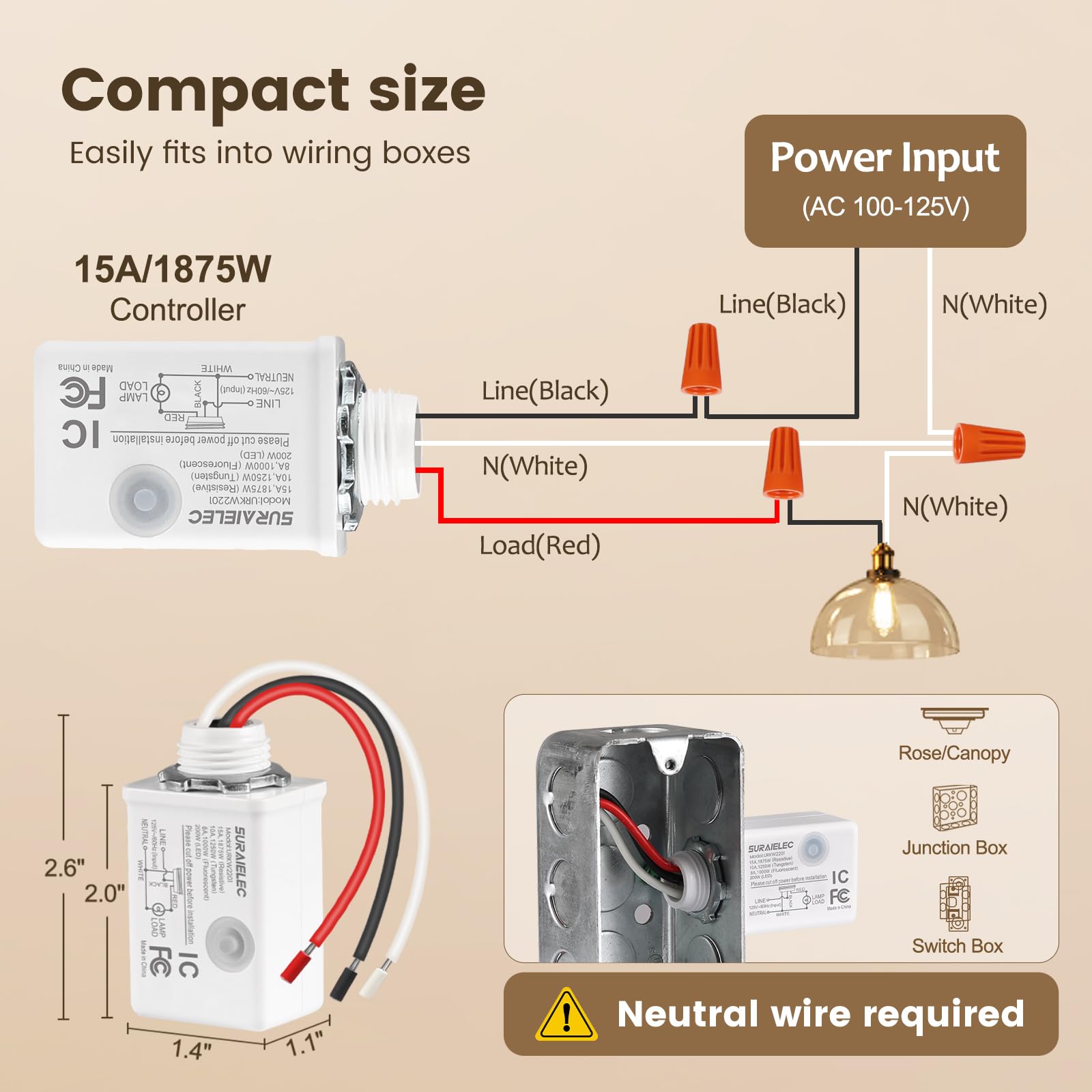

Installation focuses on placing the compact receiver between the power source and the light fixture so no in-wall switch wiring is needed. The receiver requires a neutral connection and fits into standard electrical boxes or the fixture canopy; the transmitter mounts with adhesive or the included bracket.

• Mount receiver inline at the fixture or inside the junction box.
• Connect live, neutral, and load wires to the relay terminals.

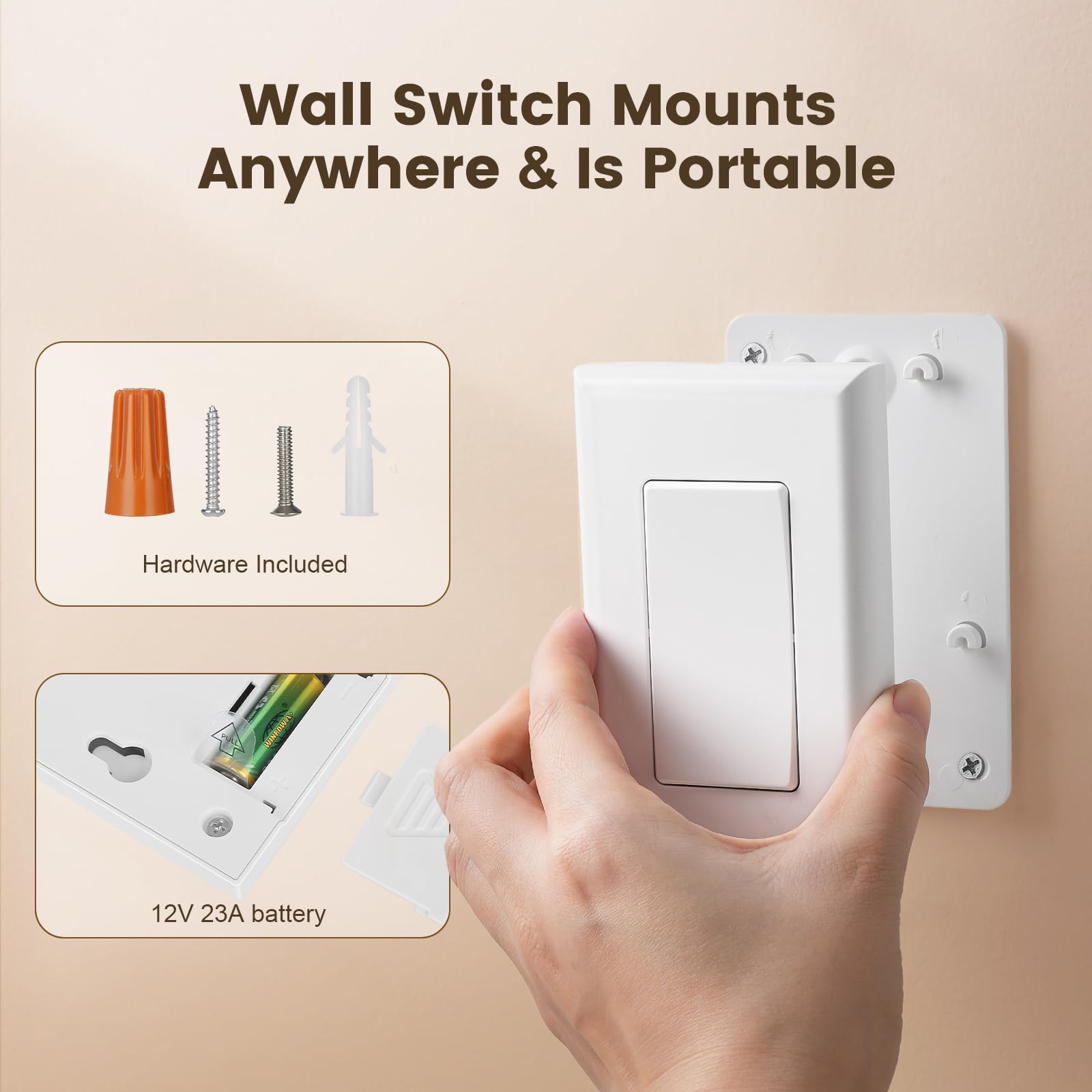

• Attach transmitter using included bracket, adhesive, or as a handheld remote.
• No WiFi, hub, or bulb replacement required.

Can this system control multiple lights without interference?

The kit uses rolling/dynamic RF codes so several transmitters and receivers can coexist without cross-activation. You can program multiple remotes to one receiver or add receivers to expand control zones, enabling wireless multi-way switching configurations.

• Pre-programmed codes for immediate use out of the box.
• Supports adding extra SURAIELEC transmitters or receivers.
• Set one remote for several fixtures or several remotes for one fixture.
• Designed to avoid interference between paired sets in the same area.

What loads and environments are supported by the receiver?

The inline receiver is rated for up to 15 amps (1875 watts), making it compatible with most household lighting circuits and many small appliances. The unit is built with weather-resistant features, letting you deploy it in lofts, attics, or sheltered outdoor locations when necessary.

• 15A / 1875W maximum load rating for incandescent, LED, and mixed loads.
• Compact form for fitting inside control boxes or light canopies.
• Weatherproof housing for semi-exposed installations.
• Neutral wire required for the receiver connection.

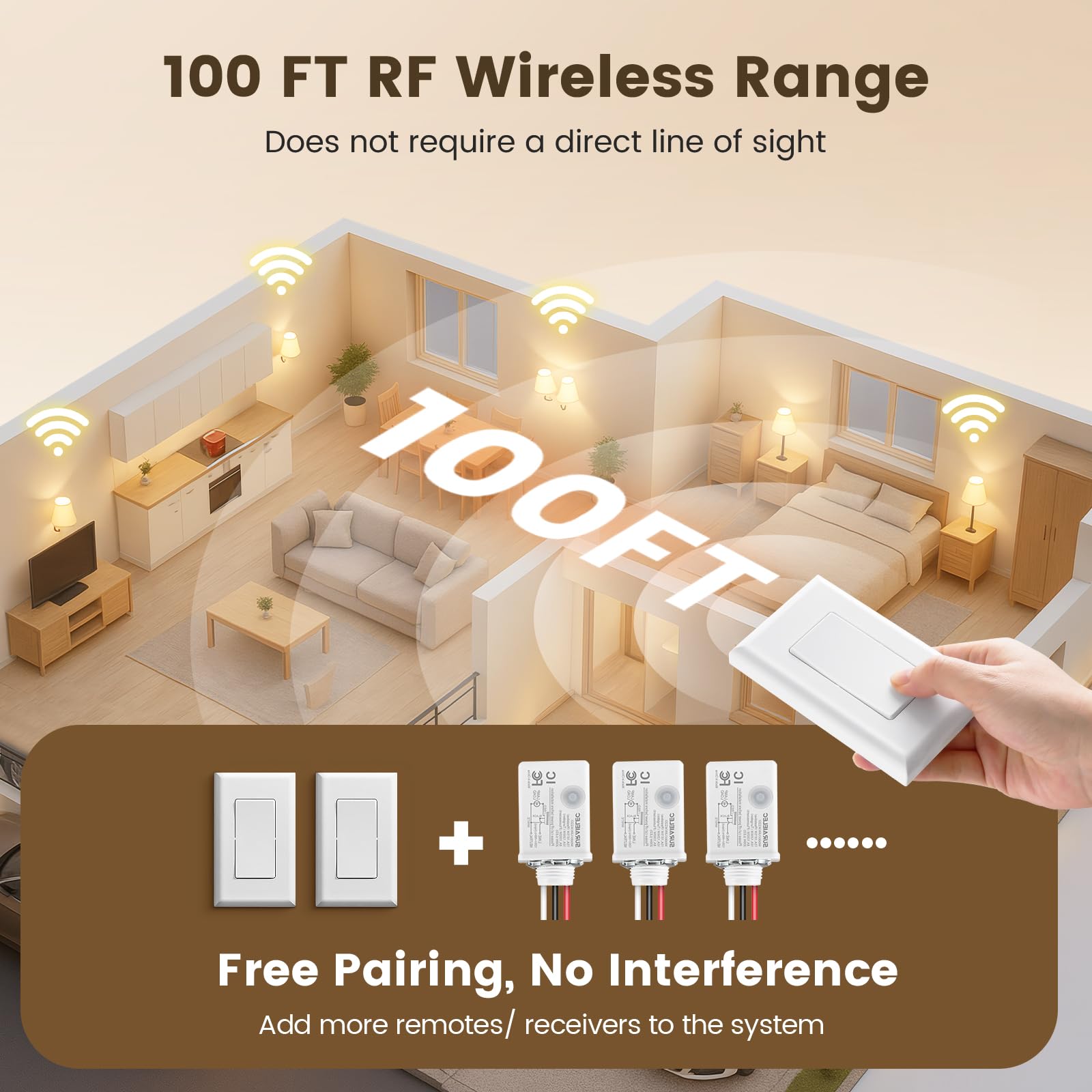

How far will the RF remote reach and how reliable is the signal?

The RF remote communicates through walls and doors with an effective range of roughly 100 feet in typical residential settings. Signal reliability is increased by strong RF transmission and dynamic coding, reducing dropped commands and accidental triggers.

• Up to ~100 ft range through standard home construction.
• Works across rooms and floors depending on building materials.
• Dynamic codes reduce remote-to-remote interference.
• Portable remote option assists users with mobility limitations.

Who is this for: The SURAIELEC Wireless Light Switch Kit is ideal for homeowners, renters, and DIYers who want remote control of existing lighting without rewiring or replacing fixtures. It suits retrofit projects, multi-way wireless setups, accessible living adaptations, and outdoor or attic installations where running new conduit is impractical. Choose this kit if you need a robust, expandable RF solution rated for typical household lighting loads and prefer an installation that stays out of walls and off the smart-home cloud.
