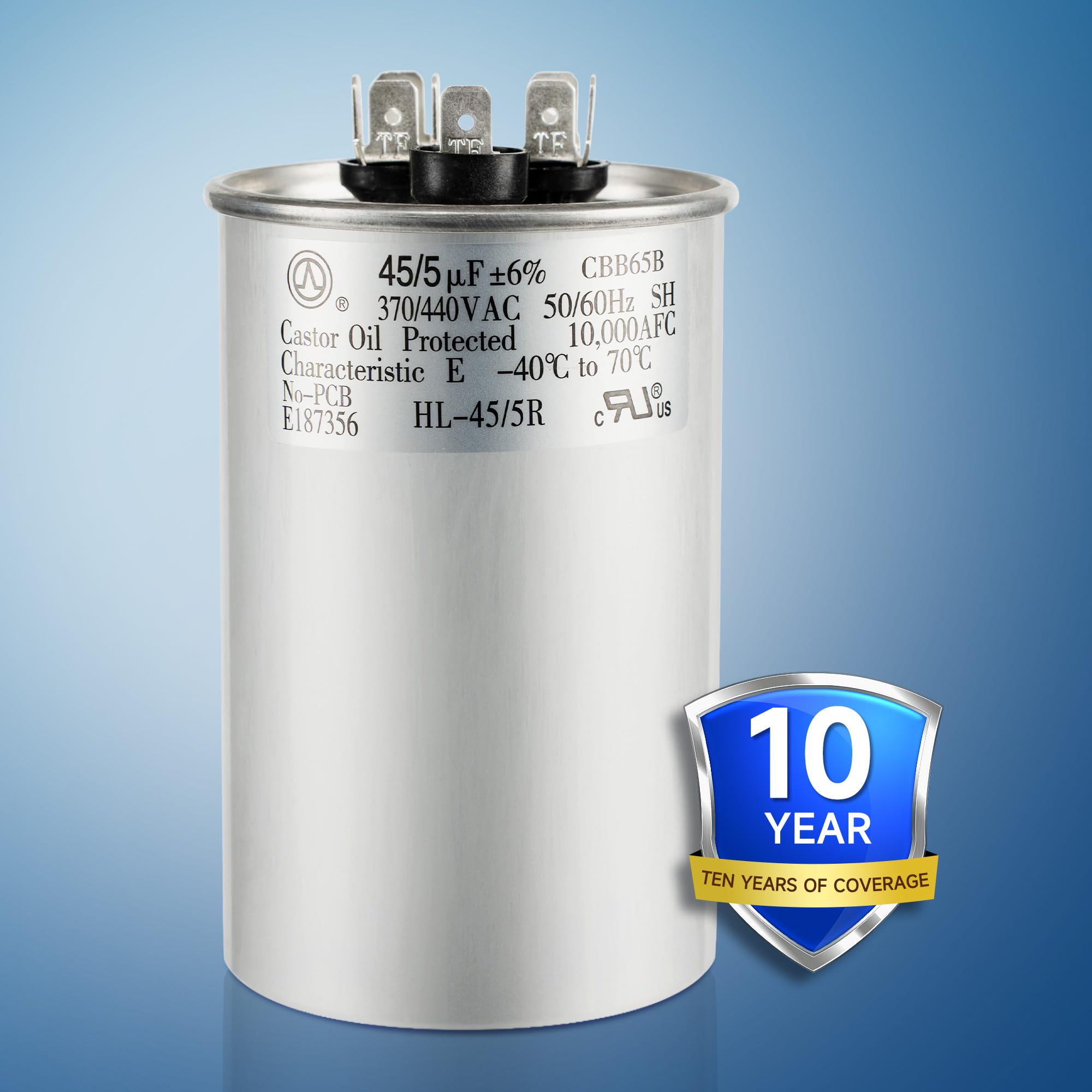

QYCKFIXR 45+5 uF Dual-Run AC Capacitor 45/5 MFD 370/440VAC CBB65 – Compact 10-Year Coverage

QYCKFIXR 45+5 uF (45/5 MFD) dual-run AC capacitor replaces both 370VAC and 440VAC motor start/run needs in heat pumps and air conditioners with durable CBB65 construction and a ten-year coverage period.

This compact, circular dual capacitor is engineered for HVAC systems that require a combined compressor and fan capacitance in a single housing. Built to recognized industry standards, it offers a straightforward swap for many common OEM part numbers and is designed to operate across a wide temperature range, helping restore reliable motor starting and running performance.

How will this capacitor fit my HVAC unit?

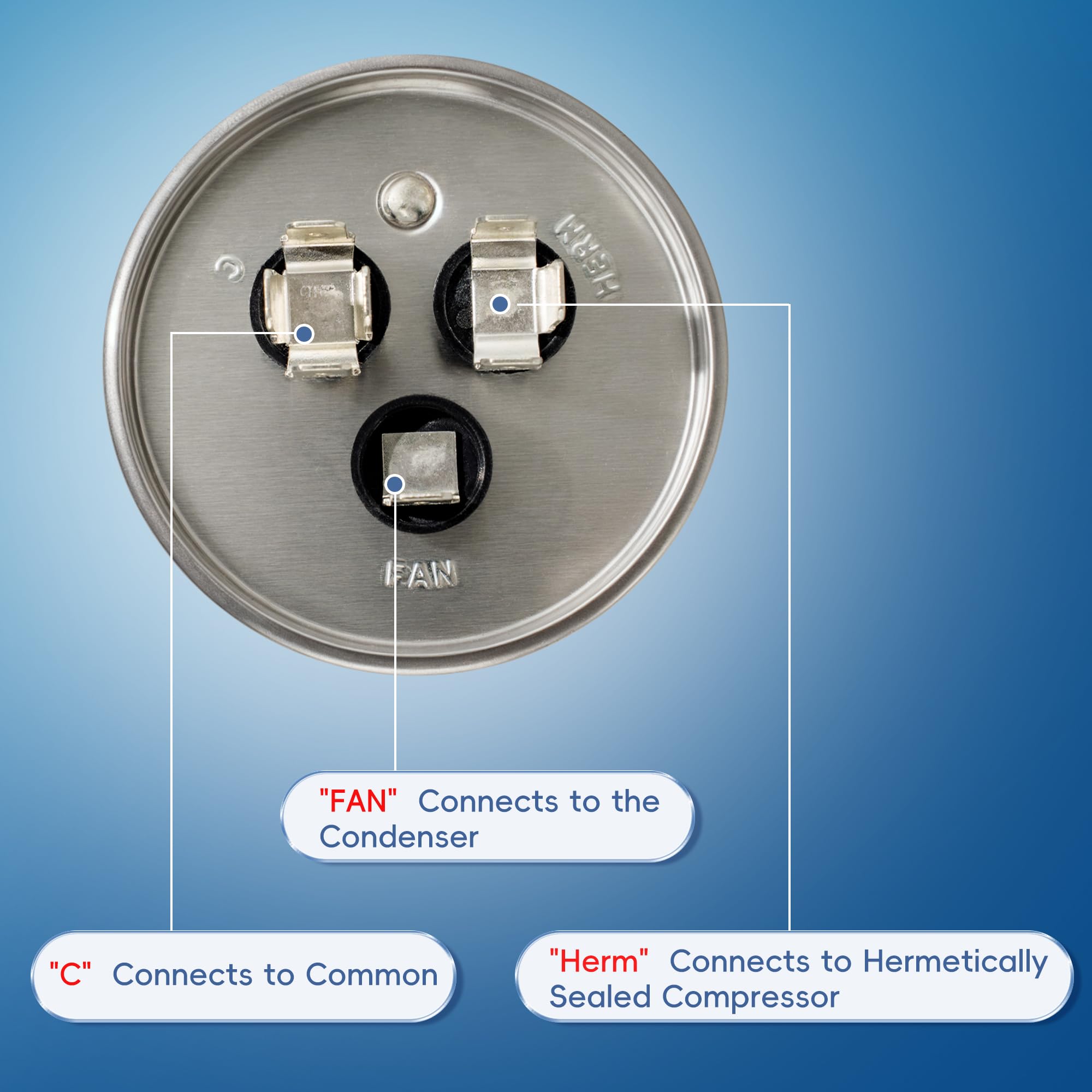

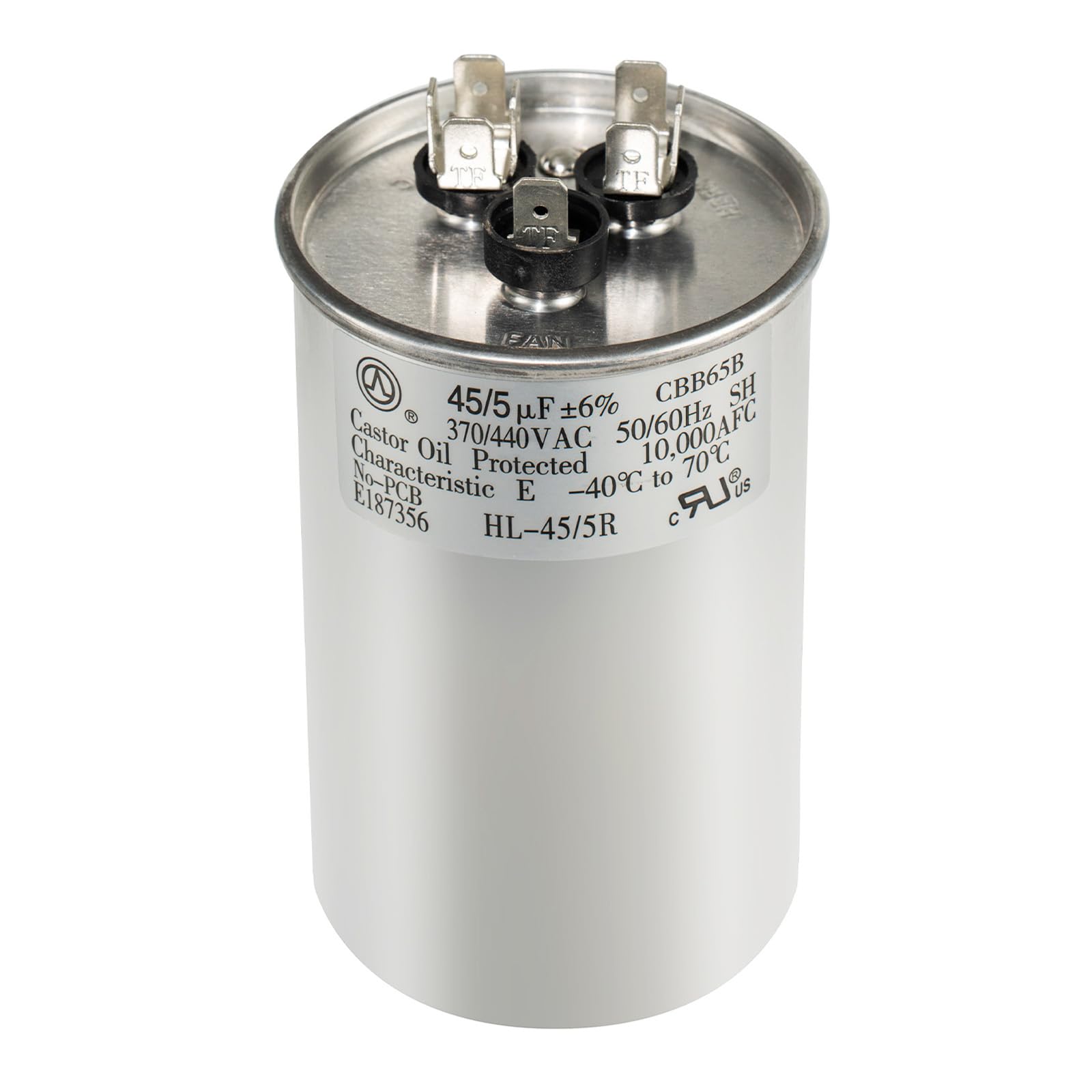

The QYCKFIXR 45+5 uF capacitor is sized to replace typical dual-run units used in residential and light-commercial heat pumps and air conditioners. Three clearly labeled top terminals make connection quick: "H" (Herm) for the compressor, "F" (Fan) for the fan motor, and "C" for the common line. Check physical dimensions and terminal layout to confirm compatibility before installation.

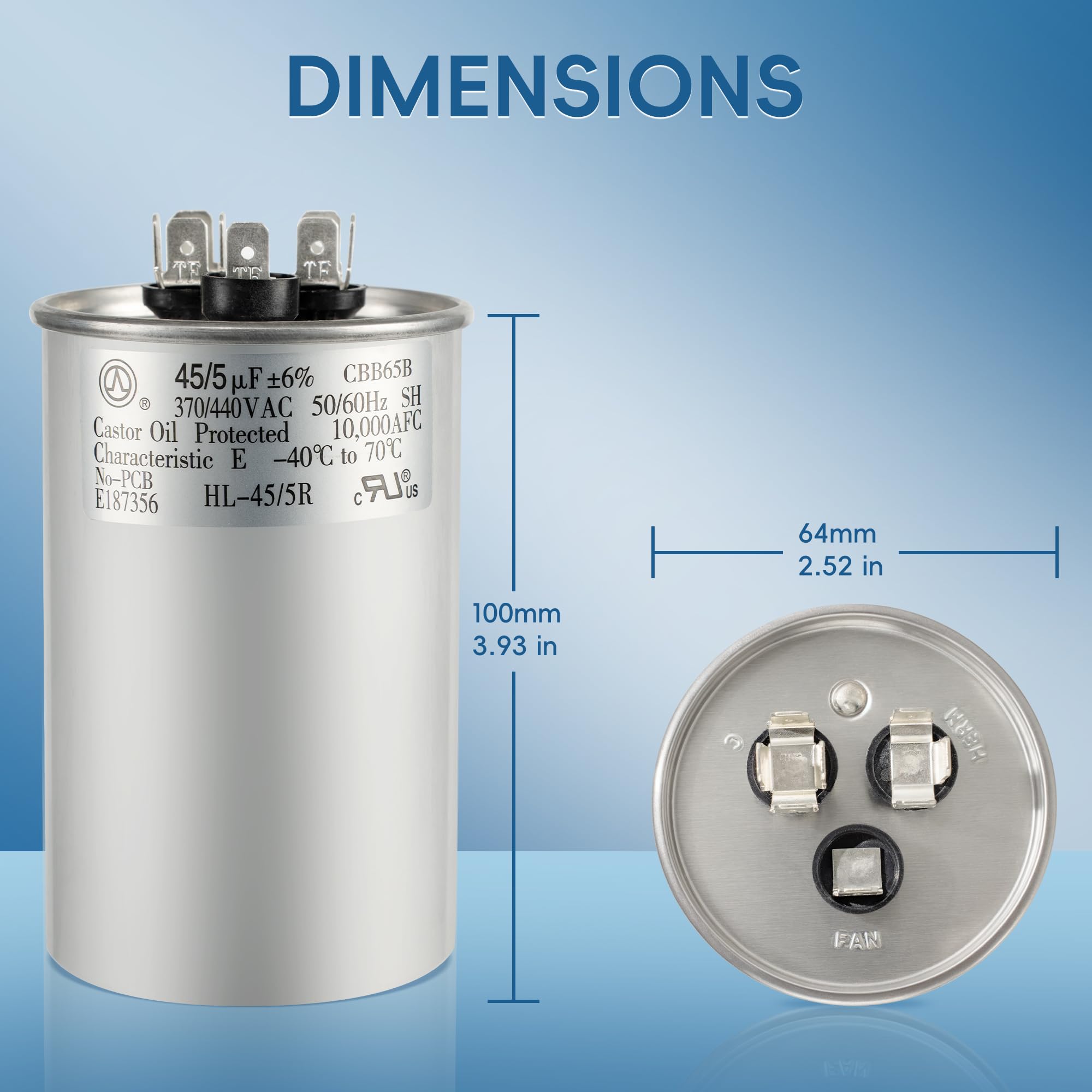

• Dimensions: 64 mm diameter × 100 mm height for compact replacement.
• Terminals: Three top studs labeled Herm/H, Fan/F, and C (common).
• Voltage: Intended for 370 VAC and 440 VAC systems.
• Capacitance tolerance: ±6% to match motor requirements.

What electrical and safety specifications should I know?

This capacitor meets tough industry standards and is safety-rated for reliable operation in demanding HVAC environments. It is constructed as a CBB65 metallized polypropylene film capacitor and designed with a high fault current rating, making it suitable for use in motor-run applications where long life and stable capacitance are important.

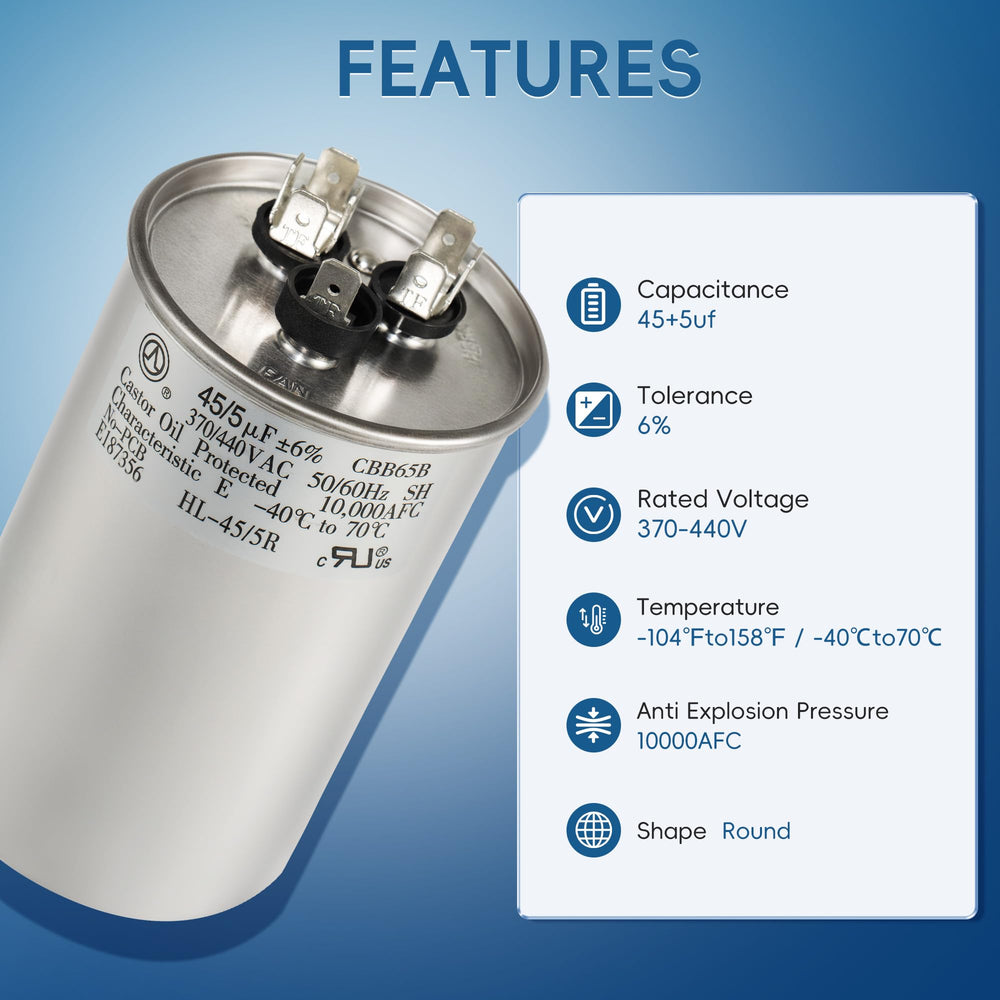

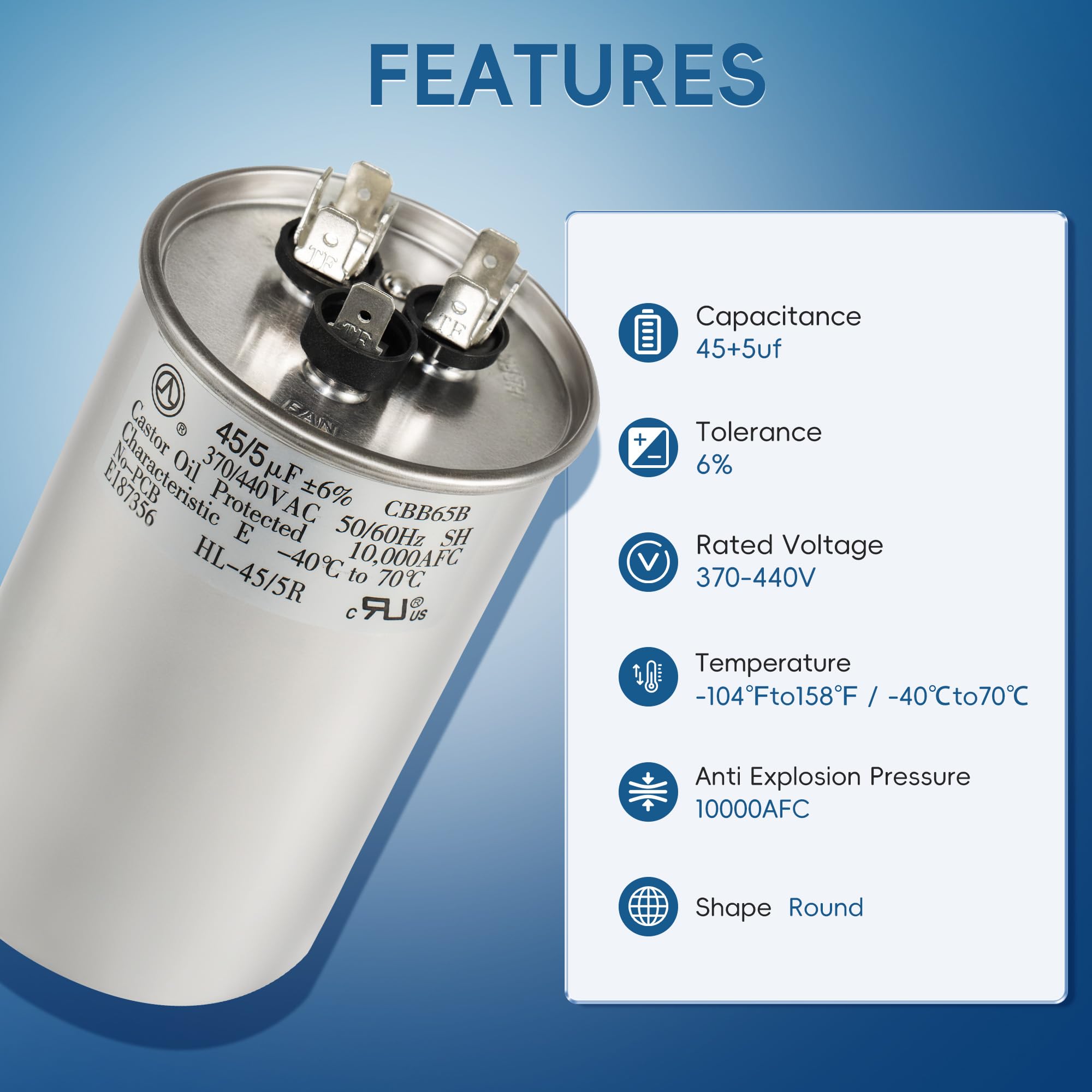

• Capacitance: 45+5 uF (MFD) dual-run configuration.
• Operating temperature range: -40°C to +70°C (-104°F to +158°F).
• Safety/current rating: 10,000 AFC (ampere fault current) for robustness.
• Standards: Built to EIA-456-A and IEC 60252-1:2001 level requirements.

Which models and part numbers does it replace?

Manufactured to match common OEM values and terminal arrangements, the QYCKFIXR 45/5 capacitor serves as a drop-in replacement for many legacy parts. Use the listed cross-reference numbers and visual terminal layout to confirm fitment with your existing component before purchasing.

• Cross-references include: 97F9895, Z97F995, 27L880, TRCD455, PRCFD455, and many others.
• Also compatible with common service codes like TT-CAP-45/5/440R and HC98KA046.
• Designed to replace both 370 VAC and 440 VAC dual-run units.
• Ideal when the original capacitor shows bulging, loss of capacitance, or fails dielectric testing.

Who is this for? Technicians, HVAC service professionals, and informed homeowners seeking a robust dual-run replacement will appreciate the QYCKFIXR 45+5 uF capacitor. It is intended for those who need a compact, standards-built component that fits a wide range of heat pumps and air conditioners, supports high operating temperature extremes, and offers long-term coverage and reliability backed by a ten-year commitment from the manufacturer.
