Matugajp 18 AWG 5-Conductor Wire 20ft — Tinned Copper, PVC Jacket, Outdoor-Rated

Matugajp 18 AWG 5-conductor 20ft cable is a flexible, tinned-copper 18/5 extension wire built for low-voltage lighting, speakers, models and general-purpose electrical connections.

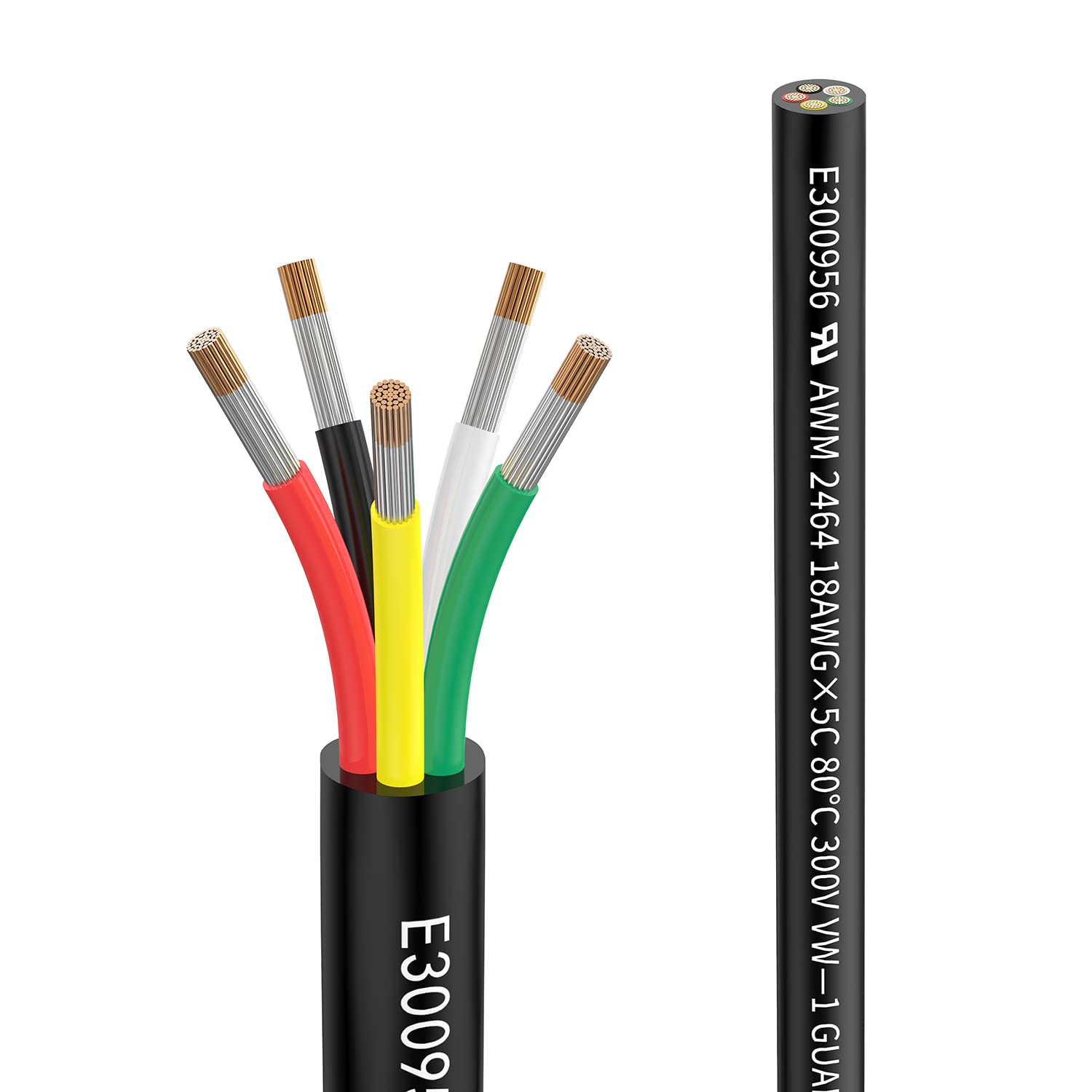

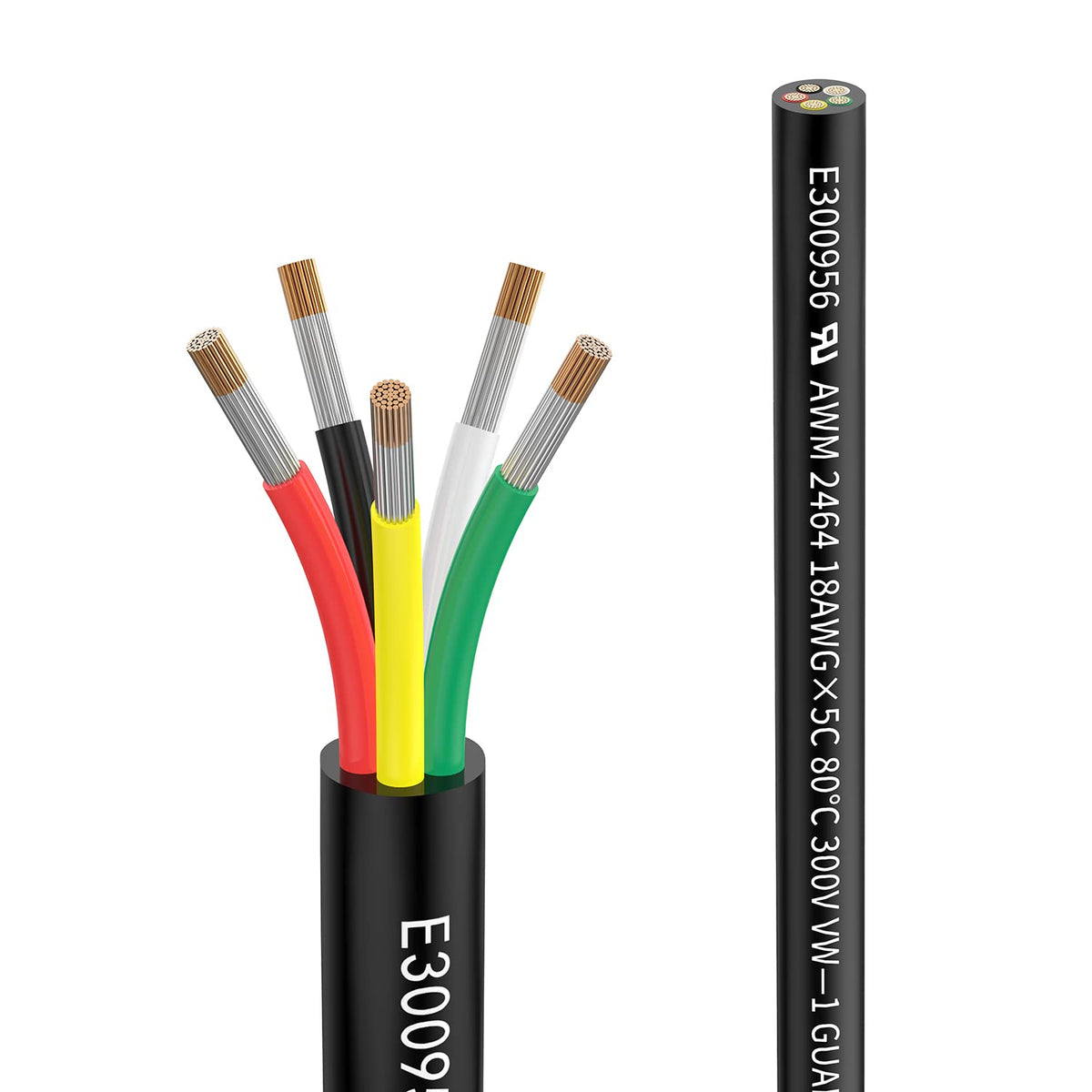

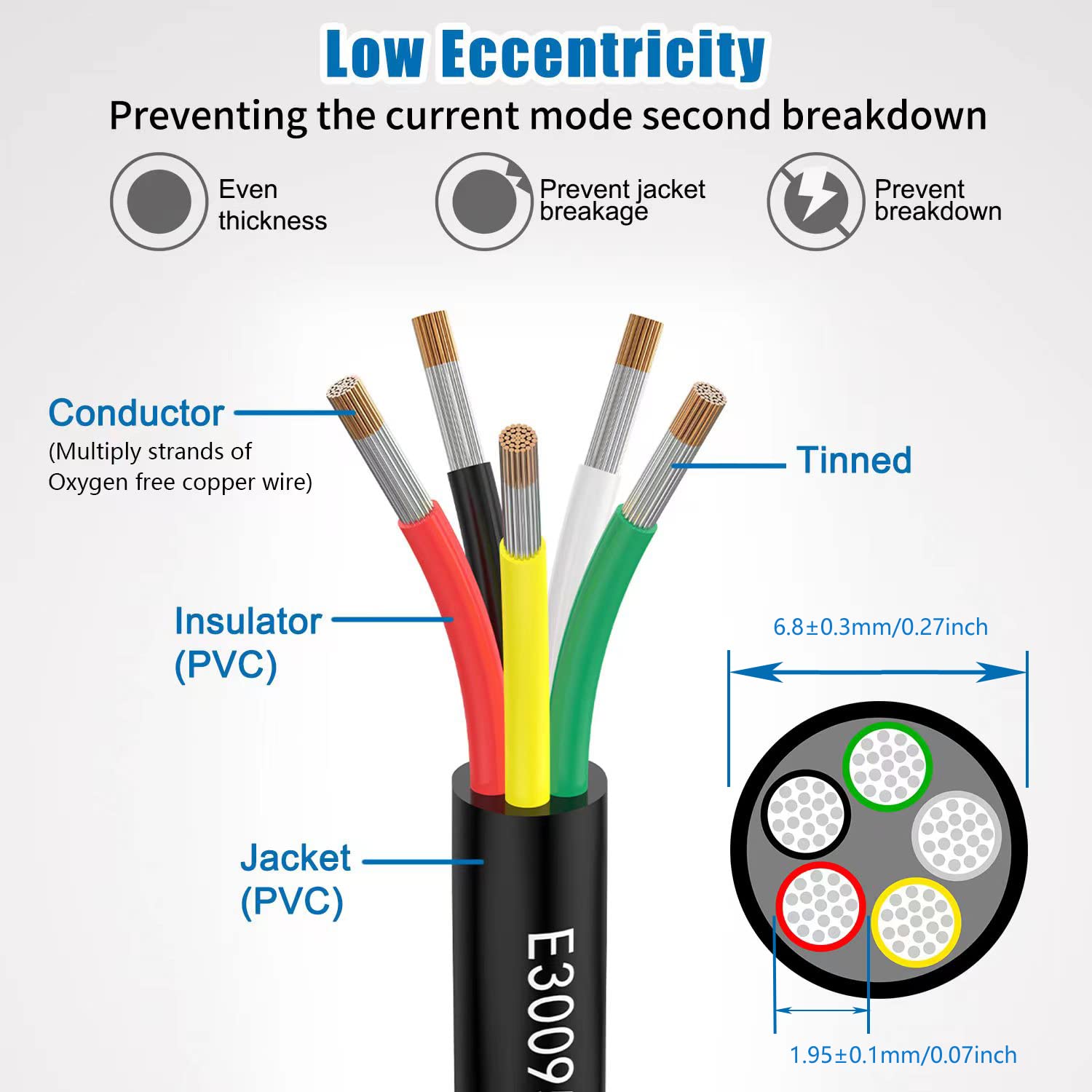

This multi-core cable combines five color-coded conductors (black, red, yellow, white, green) inside a durable black PVC jacket. Rated for up to 300V and 8.3A, it uses oxygen-free stranded copper with tin plating for easier soldering, corrosion resistance and low electrical resistance. The jacket is flame-retardant and weather-resistant, making the cable suitable for indoor and many outdoor installations where a reliable 5-conductor run is required.

How does this cable handle low-voltage lighting and LED strips?

The Matugajp 18/5 cable is designed to carry DC voltages commonly used by LED systems — from 5V and 12V up to 300V DC — while keeping voltage drop low thanks to stranded tinned copper conductors. Its 41-strand construction per core improves flexibility and current capacity for runs to accent lights, path lights and LED strips.

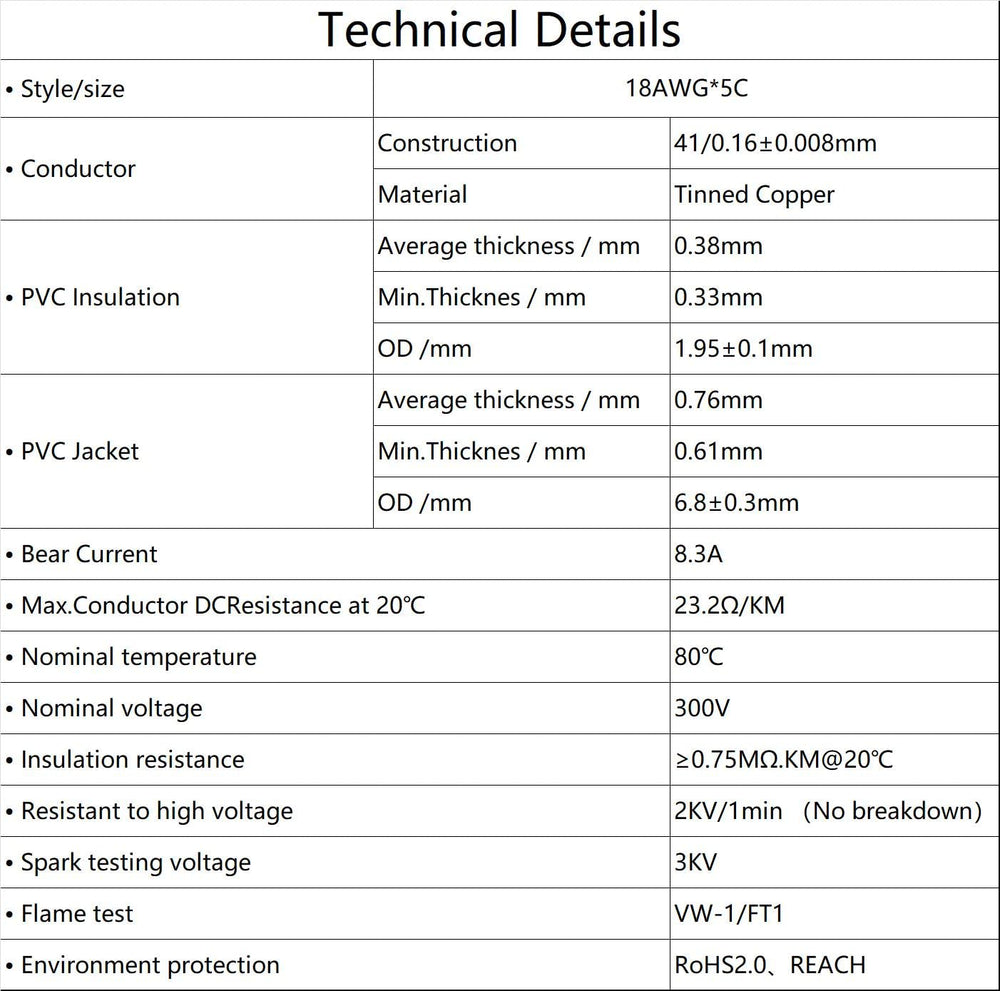

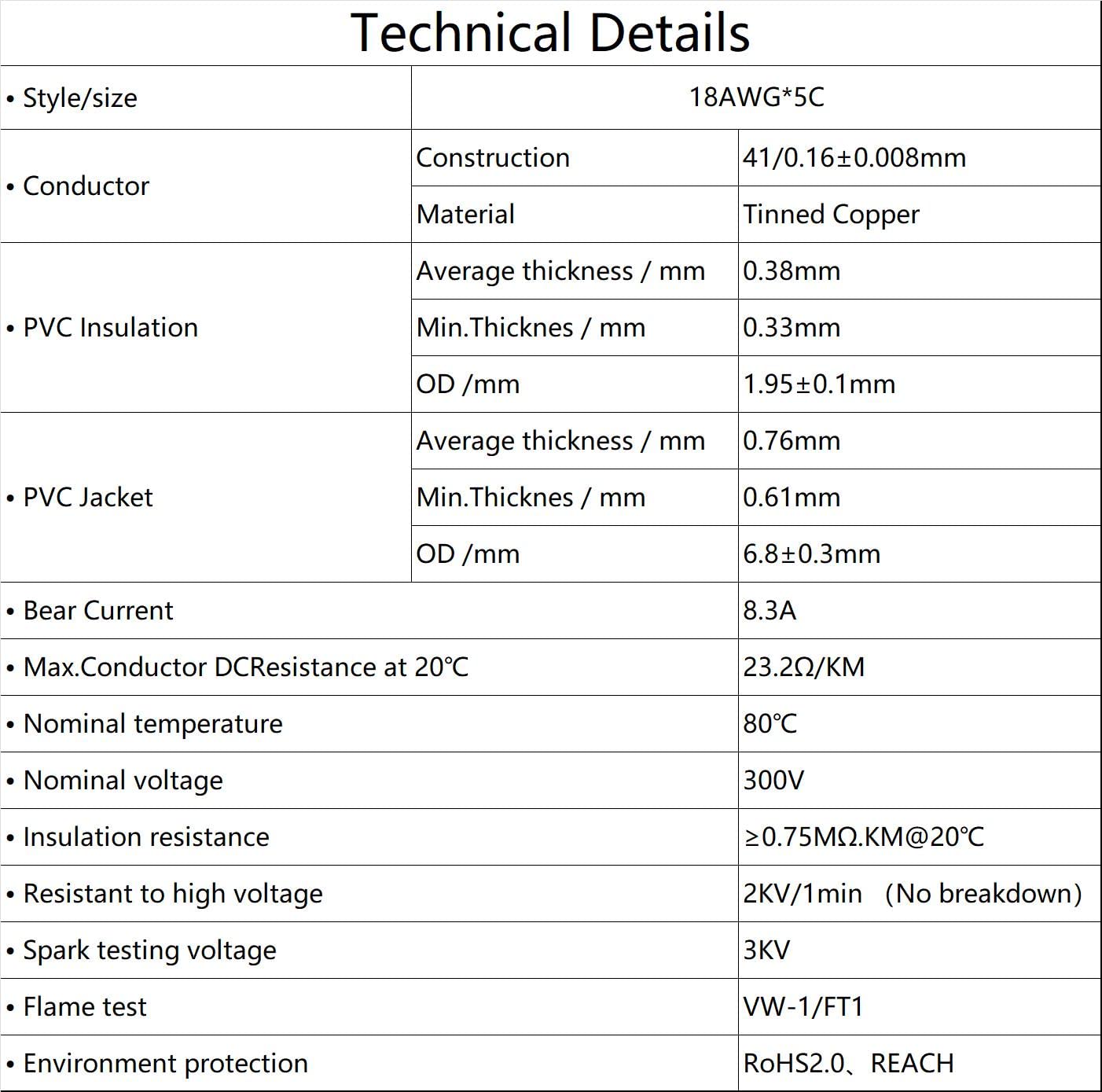

• Conductor: 18 AWG (41 strands of 0.16mm tinned copper) for low impedance.
• Voltage compatibility: suitable for 5V, 12V, 24V and up to 300V DC applications.
• Current rating: up to about 8.3A per conductor under typical conditions.
• Color coding: five insulated colors ease wiring and polarity identification.

Is this wire safe for outdoor and exposed installations?

Yes — the outer PVC jacket is flame-retardant (VW-1 and FT1) and formulated for durability against sunlight, moisture and corrosive conditions. While not every extreme environment is the same, this construction supports direct burial and prolonged outdoor use in many landscaping and garden lighting applications.

• Jacket: high-compression, anti-aging PVC that resists UV and water.
• Ratings: flame retardant VW-1 and FT1 for enhanced fire safety.
• Suitability: designed for outdoor accent, path lights and speaker runs.
• Temperature range: reliable between −20°C and 80°C.

What makes the conductor material better than cheaper alternatives?

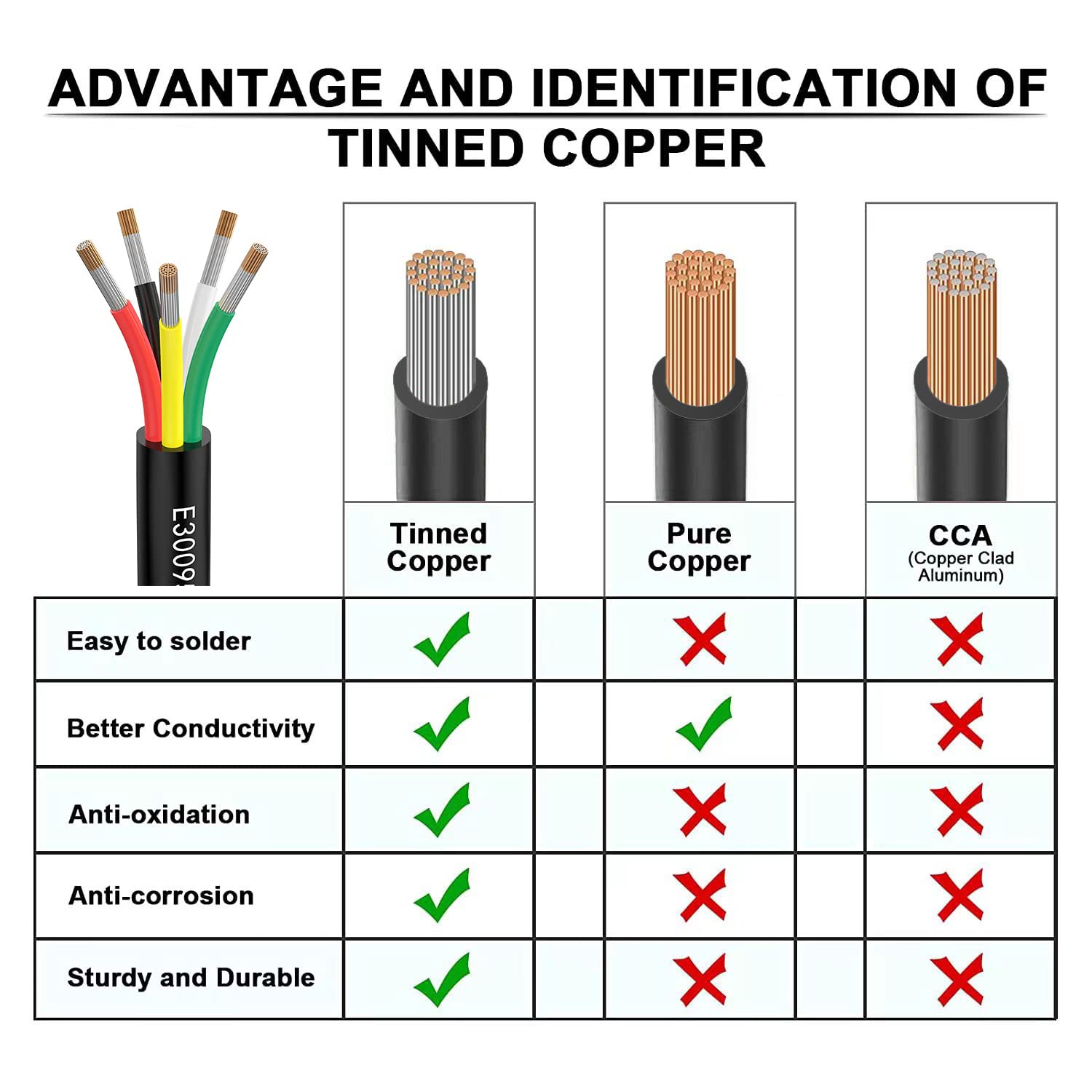

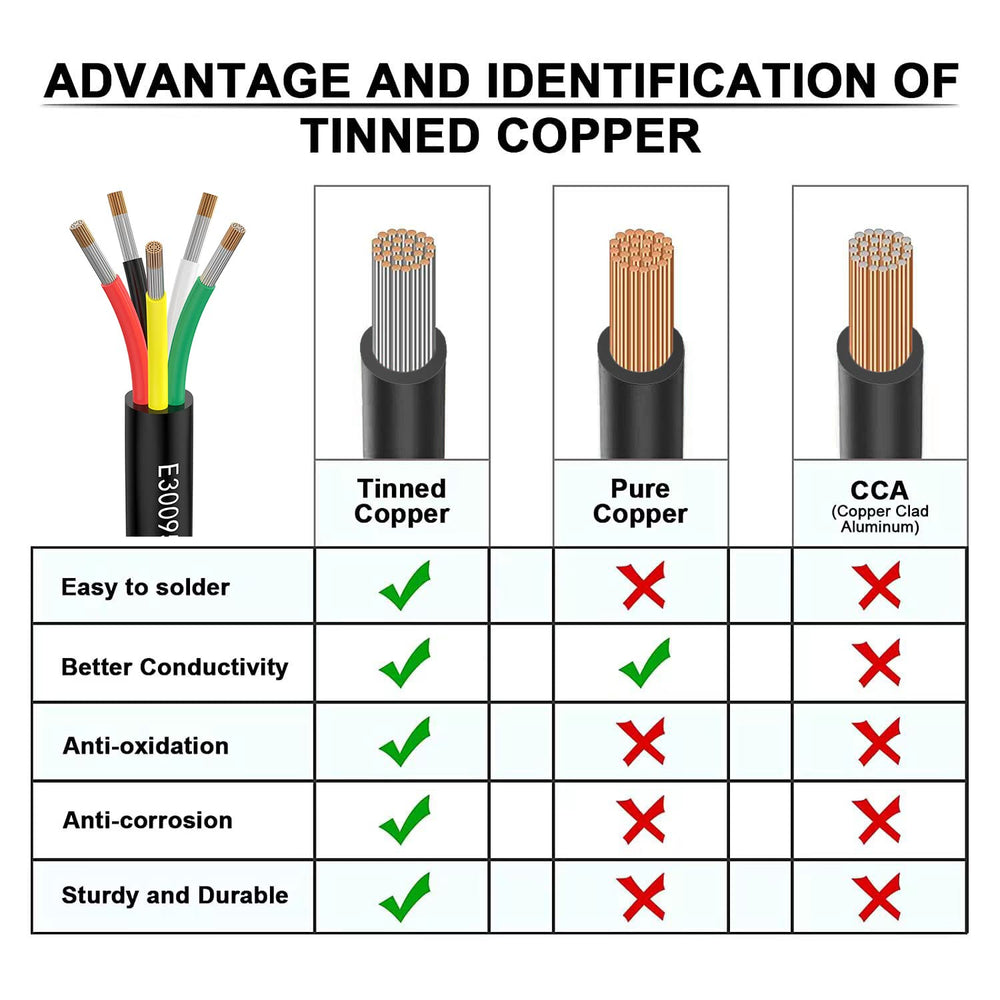

Matugajp uses oxygen-free, tin-plated stranded copper rather than copper-clad aluminum (CCA). The higher-purity copper provides lower resistance, better conductivity and easier soldering, while the tin plating reduces corrosion and improves long-term electrical contact.

• Material: high-purity oxygen-free copper for improved conductivity.
• Stranding: 41 fine strands per core for flexibility and reliability.
• Finish: tin plating for corrosion resistance and solderability.
• Performance: UL2464 standard conformance for consistent quality.

How should I use this cable in vehicle, model or home projects?

This five-conductor cable works well for multi-wire connections where space and neat color coding matter — such as car accessories, hobby electronics, motor leads, meters, amplifiers, LED controllers and appliance wiring. Cut, strip and solder or use crimp connectors; the stranded tinned copper accepts both approaches cleanly.

• Common uses: automotive accessories, model planes/cars/ships, LED strips, garden lights.
• Connection tips: suitable for soldering or crimp connectors because of tinned strands.
• Length: 20 feet for medium runs; ideal for short to moderate distance wiring.
• Electrical spec: conductor DC resistance at 20°C approx. 23.2 Ω/km per spec.

Who is this for? Installers, hobbyists and DIYers who need a five-core, flexible cable with durable outdoor-capable jacket and reliable electrical characteristics. If you want a multi-conductor wire that is easy to solder, color-coded for neat installations, and built to UL2464-aligned quality standards, this 20ft Matugajp 18/5 cable is a practical choice for lighting, audio, model-building and general low-voltage wiring projects.
