Matugajp 12AWG 3-Conductor Extension Cable 10FT — Tinned Copper, Weather-Resistant PVC Jacket

Matugajp 12AWG Electrical Wire is a 10-foot, three-conductor, tinned-copper extension cable built for reliable low- and medium-voltage power runs indoors or outdoors.

This 12 gauge (3.3 mm²) cable combines high-purity, tin-plated stranded copper conductors with a flame-retardant, weather-resistant PVC jacket to handle DC and AC applications up to 300 V and continuous currents up to 32.9 A. It’s designed for installations where flexibility, corrosion resistance and durability matter—think lighting runs, garden accessories, automotive projects, inverters and other general-purpose wiring tasks.

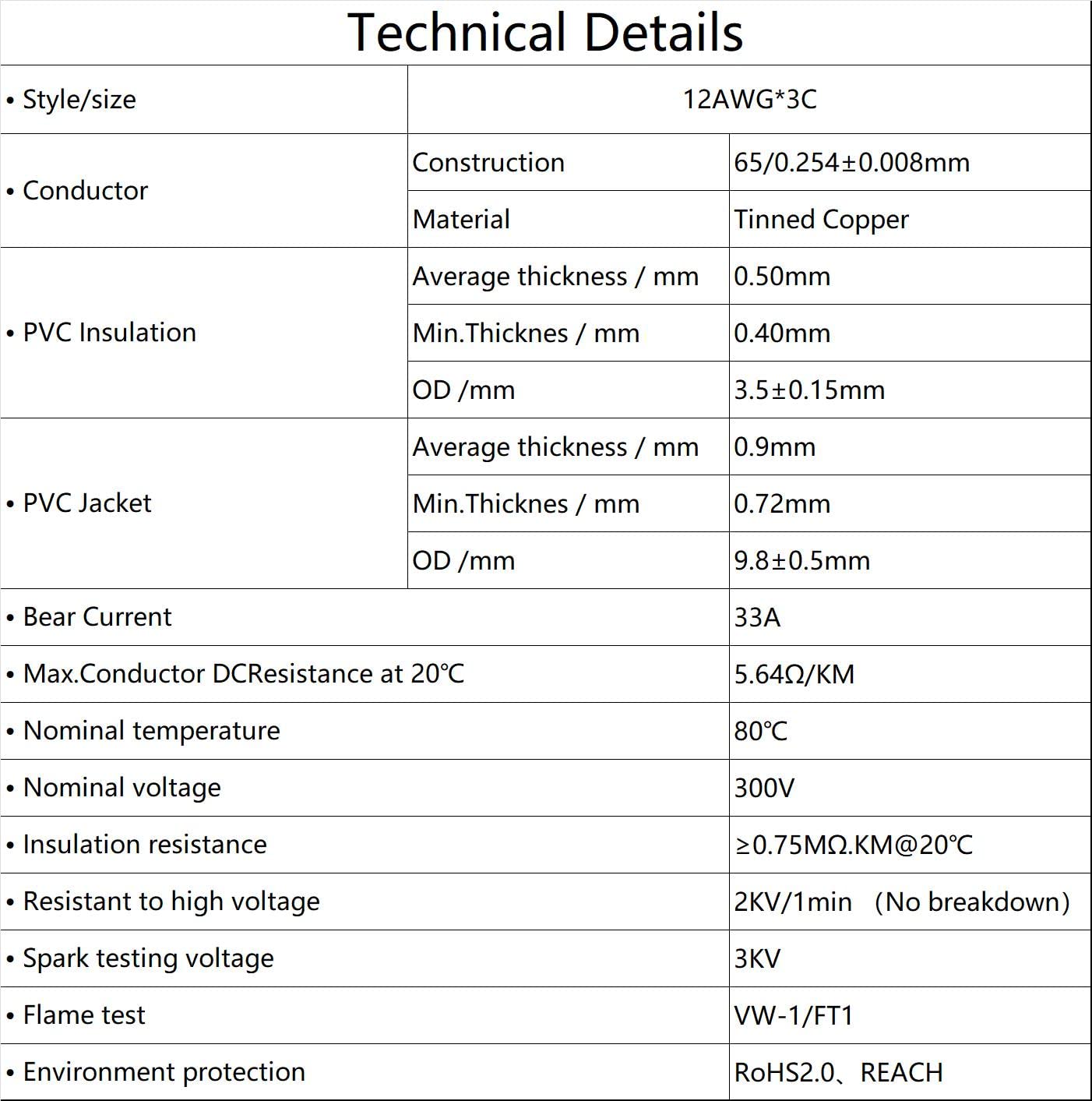

What electrical specifications and safety ratings does this cable have?

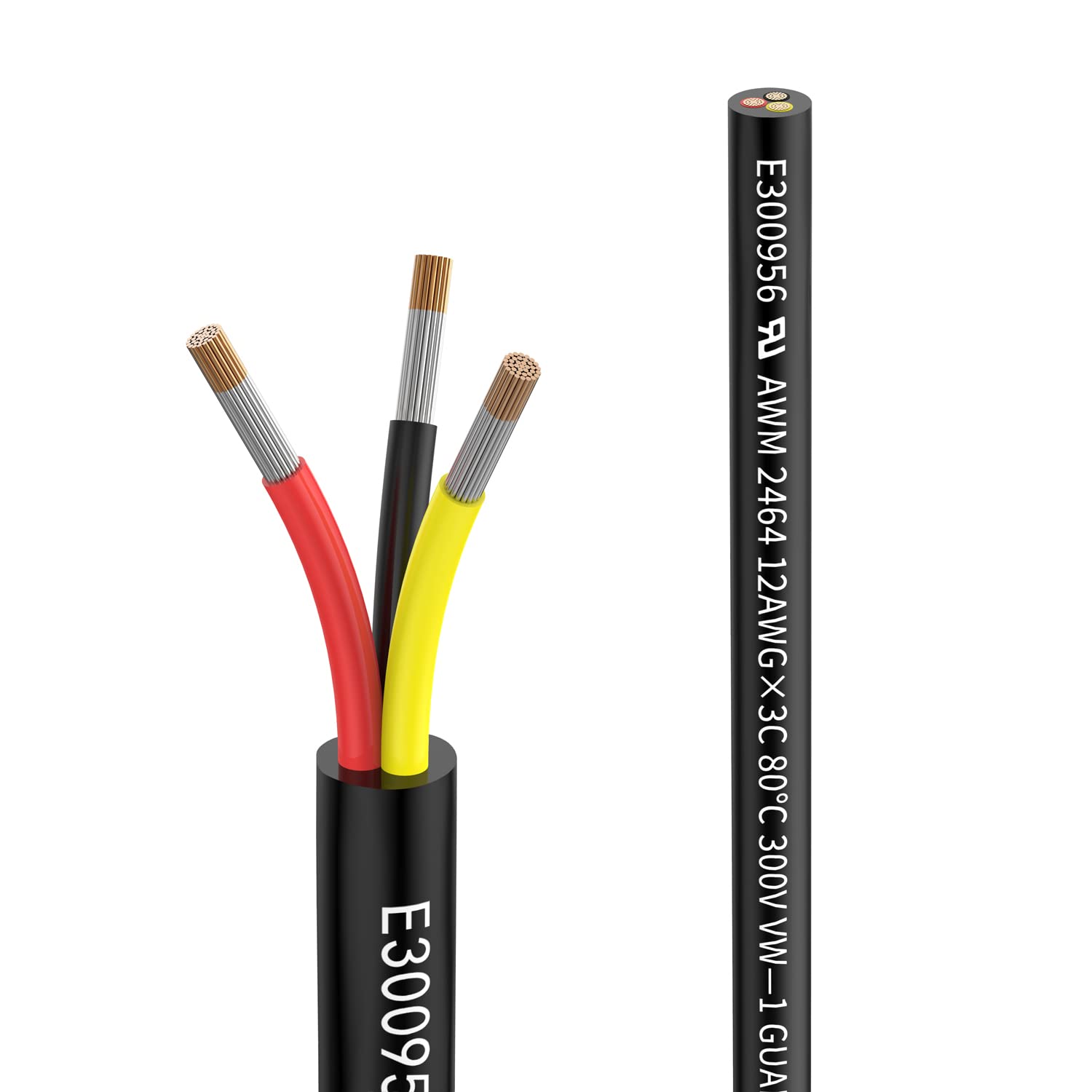

The Matugajp cable is rated 12 AWG (3.3 mm²) with three color-coded cores (black, red, yellow), a maximum voltage rating of 300 V, and a continuous current capacity of about 32.9 A. Its jacket meets flame-retardant standards VW-1 and FT1 and performs across a temperature range from -20°C to 80°C.

• Conductor: 65 strands of 0.254 mm tin-plated oxygen-free copper per core
• Voltage: up to 300 V (suitable for 5 V–300 V DC applications)
• Current: approximately 32.9 A continuous
• Temperature range: -20°C to 80°C; jacket rated VW-1 and FT1

How does the construction improve performance and longevity?

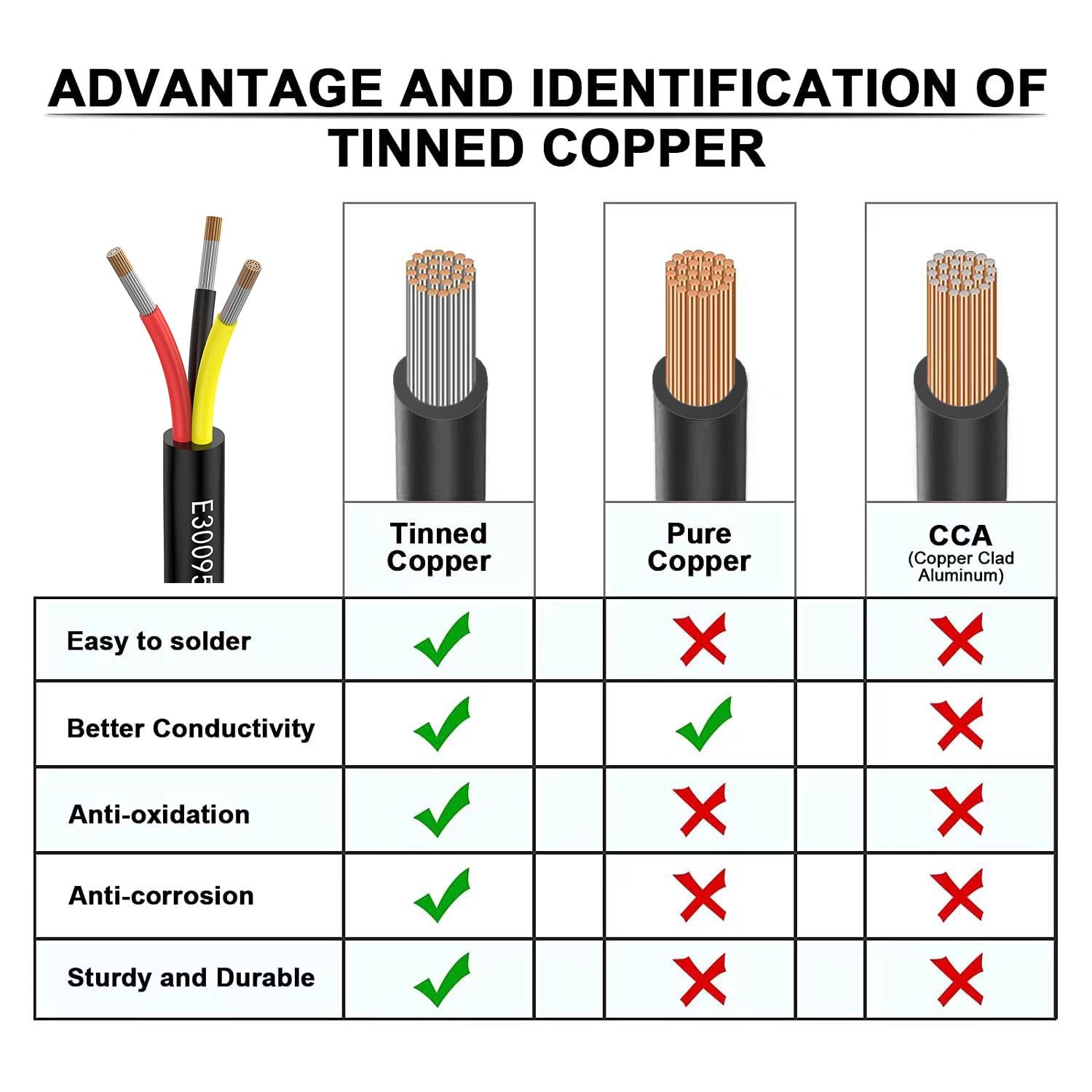

The conductors are multi-stranded, tin-plated oxygen-free copper which lowers impedance, increases conductivity and resists corrosion—especially useful where soldering or long-term outdoor exposure is expected. The PVC jacket provides mechanical protection, resists aging, and is built to withstand sun, moisture and dirt for outdoor runs or direct burial.

• Tinned strands: easier soldering and superior corrosion protection
• High-purity copper: reduced resistance and better current flow
• Durable PVC jacket: UV, water and abrasion resistant for outdoor use
• Stranded design: greater flexibility for routing and repeated handling

Which applications is this 3-conductor cable best suited for?

This cable covers a wide range of low- and medium-voltage projects such as LED strips, garden and pathway lighting, outdoor speakers, automotive wiring, battery connections, small inverters and hobby electronics. Its combination of gauge, strand count and jacket durability makes it a versatile choice for both permanent and temporary installations.

• Landscape lighting, spotlights and LED strips
• Automotive, RV and battery connections
• Small motor leads, model vehicles and instruments
• Inverter wiring, household appliances and general electrical runs

How should I install and maintain the cable for best results?

Route the cable avoiding sharp edges and high-temperature surfaces; secure with appropriate clamps and allow slack at connections. For outdoor or buried runs, use proper conduit or burial-rated sheathing where required and seal connections against moisture; periodic inspection helps spot wear or UV degradation over time.

• Use proper strain relief and insulated terminals when soldering or crimping
• Avoid running next to high-heat sources; maintain service temperature limits
• When burying, follow local electrical code and consider conduit for extra protection
• Inspect annually for abrasion, cracking or exposed conductors

Who this is for: technicians, electricians, DIYers and hobbyists seeking a flexible, corrosion-resistant 12 AWG three-conductor cable for lighting, automotive and low-voltage power distribution. It’s a practical, cost-effective option when you need a rugged, solder-friendly conductor assembly with a weatherproof outer jacket for both indoor projects and outdoor installations.
