CANIPHA R134A Valve Core Remover & Installer Kit — 31‑Piece High/Low Pressure, Brass

CANIPHA's 31-piece R134A valve core quick remover and installer kit is a complete high/low pressure solution for removing, installing, and sealing AC valve cores safely and quickly.

This professional-grade set bundles two quick-connect valve adapters (high and low), an assortment of R134A and 5V1 valve cores, service port caps, and a double-ended stem tool so you can service automotive and HVAC refrigerant ports without excessive refrigerant loss. Every component is built for repeated workshop use and convenient field repairs.

How do the high- and low-pressure quick connectors prevent refrigerant loss?

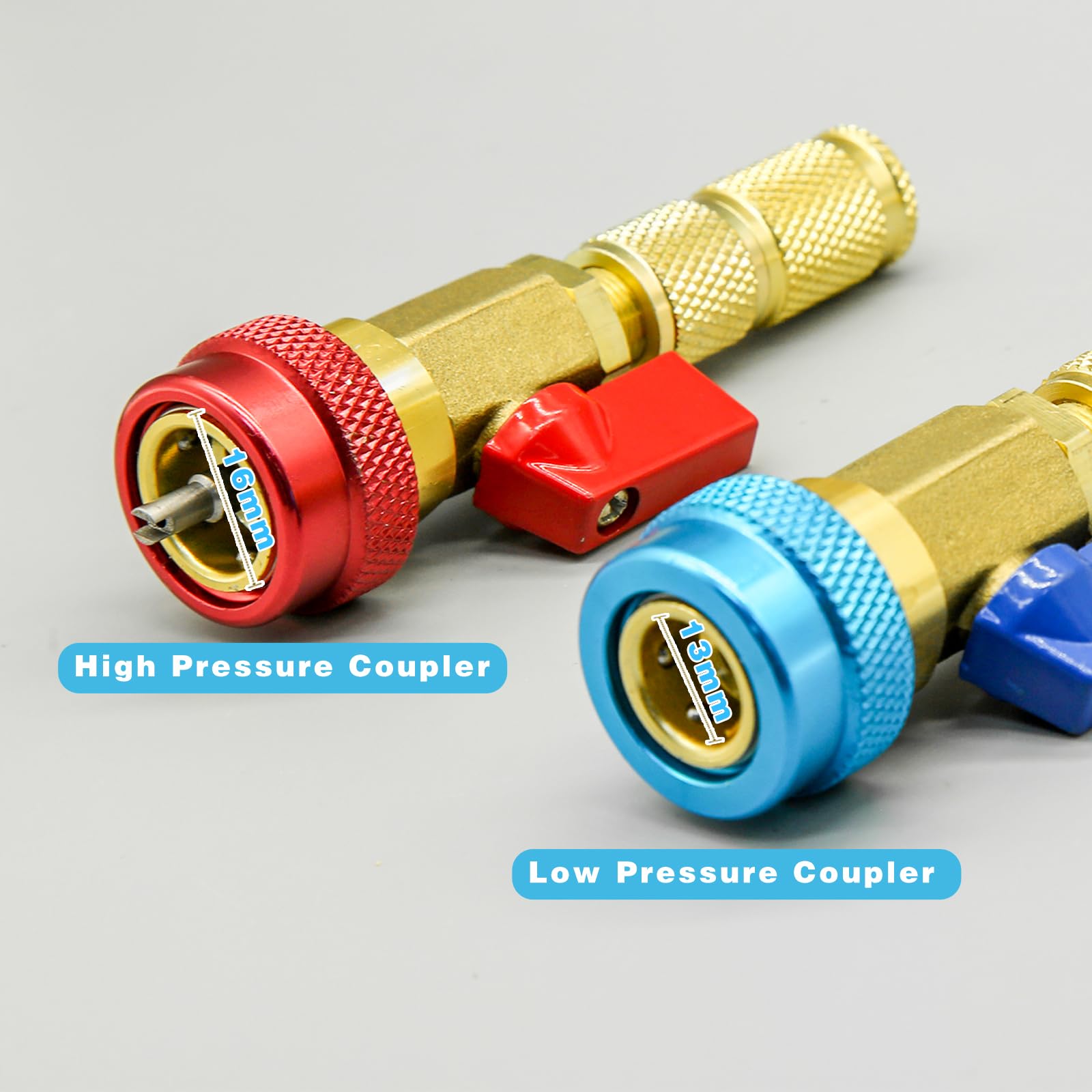

The kit includes two quick-connect adapters sized for common service ports: a red high-pressure adapter and a blue low-pressure adapter. Each connector has a quarter-turn ball valve to isolate the system while you remove or install valve cores, minimizing refrigerant escape during service.

• Red high-pressure connector: 16mm bottom inner diameter for secure fit.
• Blue low-pressure connector: 13mm bottom inner diameter for standard low-side ports.
• Quarter-turn ball valve on each adapter to quickly open or shut flow.
• Threaded sealing faces to reduce leakage during core changes.

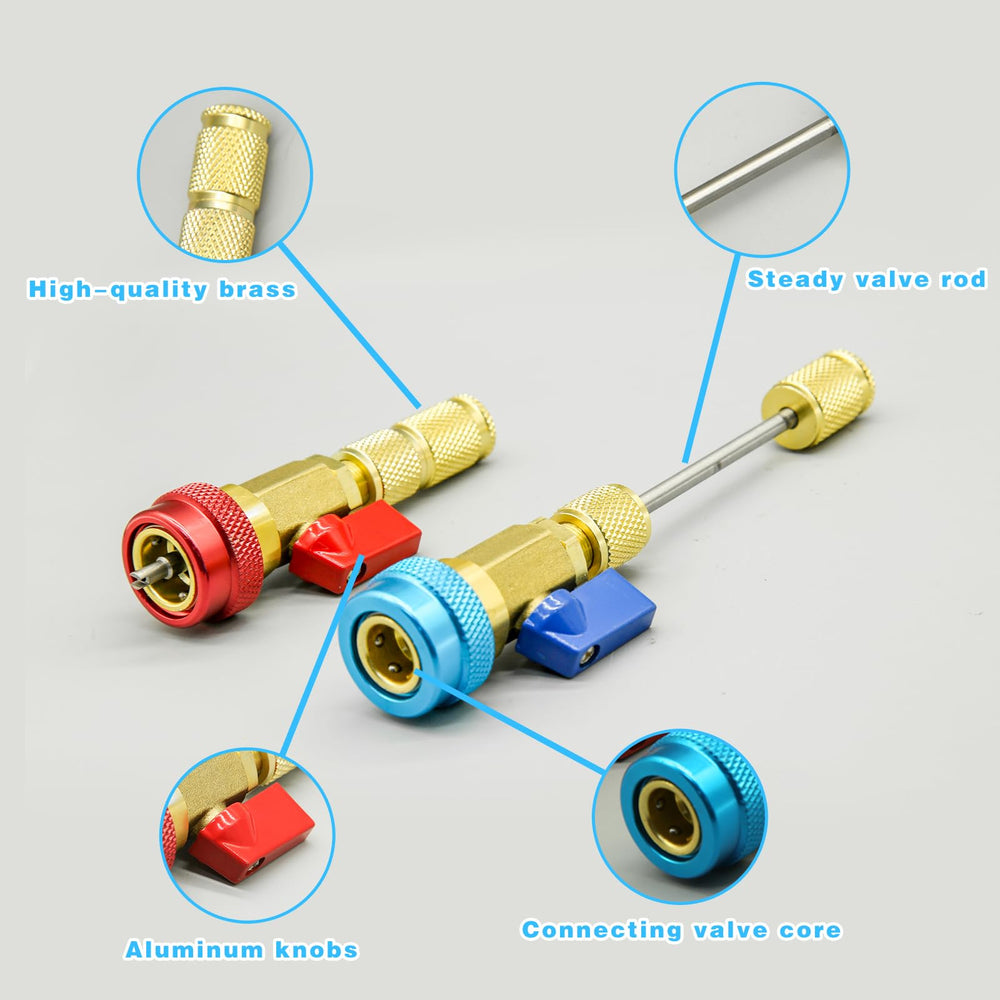

What materials and design features make the tools durable and easy to use?

CANIPHA engineered the main bodies from brass for impact resistance and corrosion tolerance, while stainless steel valve stems provide strength and longevity. The aluminum knobs are textured externally to improve grip and control, reducing slippage when working in oily or cramped engine bays.

• Brass connectors resist wear and maintain sealing surfaces.
• Stainless-steel valve stems for reliable core engagement and removal.
• Knurled aluminum knobs provide non-slip handling and torque control.
• Compact, ergonomic shapes designed for tight service areas.

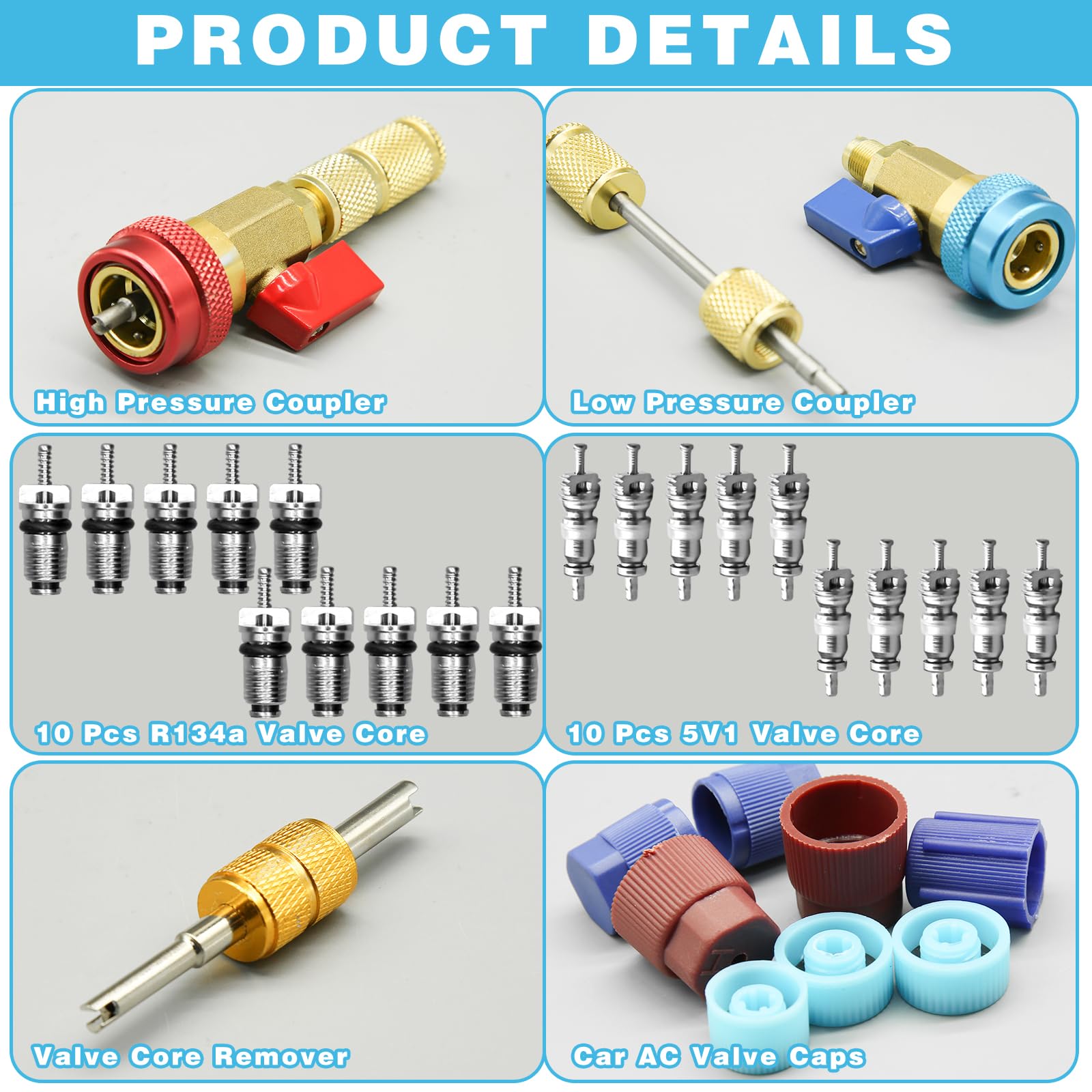

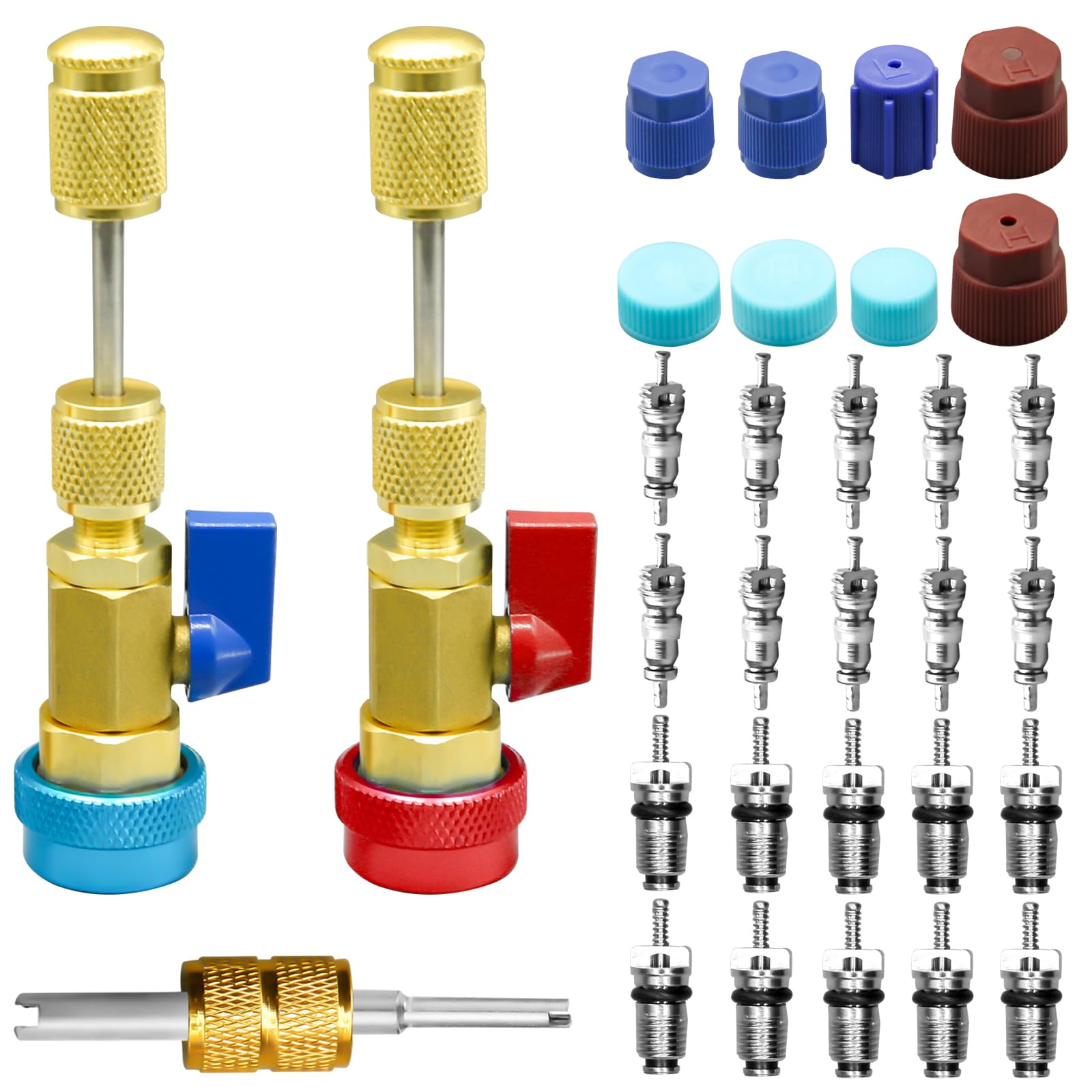

Which valve cores, caps, and accessories are included and how do they fit typical repairs?

The set contains a practical mix of replacement parts so you can complete most common valve-core repairs immediately. Two quick-removal adapters let you work on either pressure side without switching tools; multiple core types and caps give flexibility across vehicle makes and HVAC systems.

• 2 R134A quick-removal adapters (high and low pressure).
• 10 R134A valve cores and 10 5V1 valve cores for broad compatibility.
• 8 AC service port caps to replace lost or damaged caps after service.
• 1 double-ended valve stem removal tool for hard-to-reach cores.

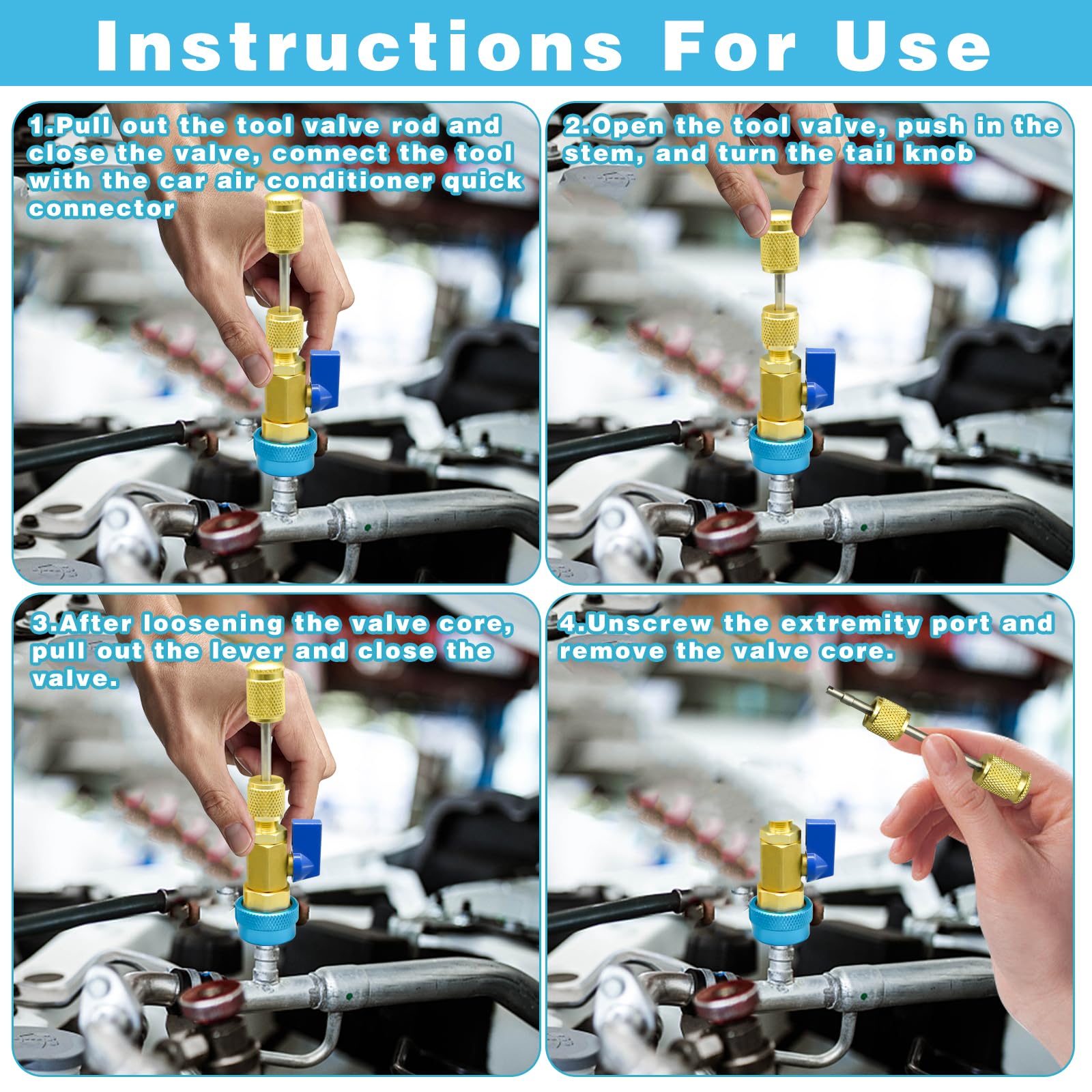

How quickly can a technician or DIYer learn to use this kit safely?

The tools are intuitive: connect the appropriate adapter, close the adapter’s ball valve, engage the core grabber, and extract or install the core before reopening the valve. Simple grip cues and clear mechanical stops help prevent overrun and reduce the chance of cross-threading or dropping cores.

• Push-on quick connectors attach in seconds with audible engagement.
• Core grabber holds valve cores securely during extraction or insertion.
• Quarter-turn valve operation provides immediate on/off control.
• Compact kit layout speeds selection in busy repair scenarios.

Who is this for: The CANIPHA 31-piece kit is aimed at automotive technicians, HVAC servicemen, fleet maintenance teams, and competent DIYers who perform refrigerant port maintenance. If you need a compact, durable set that covers common R134A and 5V1 cores and reduces refrigerant loss during valve-core changes, this kit delivers workshop-grade parts and straightforward operation for routine service and emergency repairs.
