Bxmgr T104M Pool Timer Mechanism Replacement — 24-Hour 208–277V 40A Mechanical Time Switch, 12 ON/OFF Cycles

The Bxmgr T104M is a heavy-duty mechanical pool timer mechanism that controls 24-hour on/off schedules for pumps and pool equipment on 208–277VAC systems, rated to 40A with up to twelve daily on/off cycles.

If your existing pool timer motor, pointer, or dial has failed or become unreliable, the Bxmgr T104M timer mechanism is a direct-replacement solution built for outdoor and commercial pool enclosures. The unit combines a newly upgraded copper-wound motor and reinforced pointer with a robust metal dial assembly, a DPST dual-circuit switch and a clear 24-hour face marked in 15-minute intervals. It’s designed to fit most waterproof timer boxes and to restore scheduled operation for pumps, lighting and other pool accessories without complex electronics.

How durable and reliable is the T104M for outdoor pool use?

The T104M uses improved materials across the motor, pointer and dial to resist moisture and wear. Operating temperature spans from -60°F to 180°F, and the upgraded pin connections reduce failure points common to older timers.

• Copper-wound motor (upgraded July 2026) for longer life and steady torque.
• Metal timing dial and hands that resist moisture and corrosion.

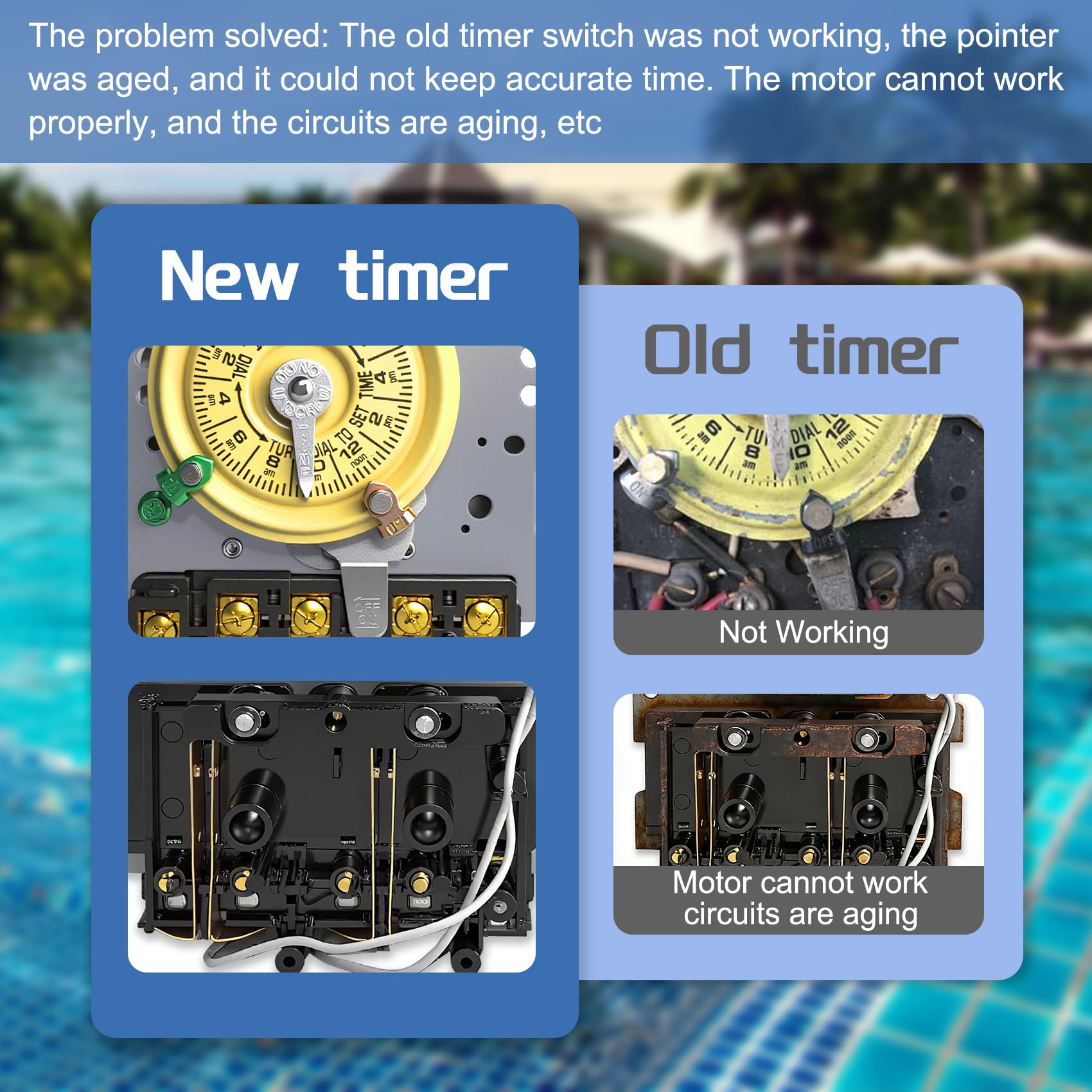

• Improved pin-connection interface for secure electrical contacts.

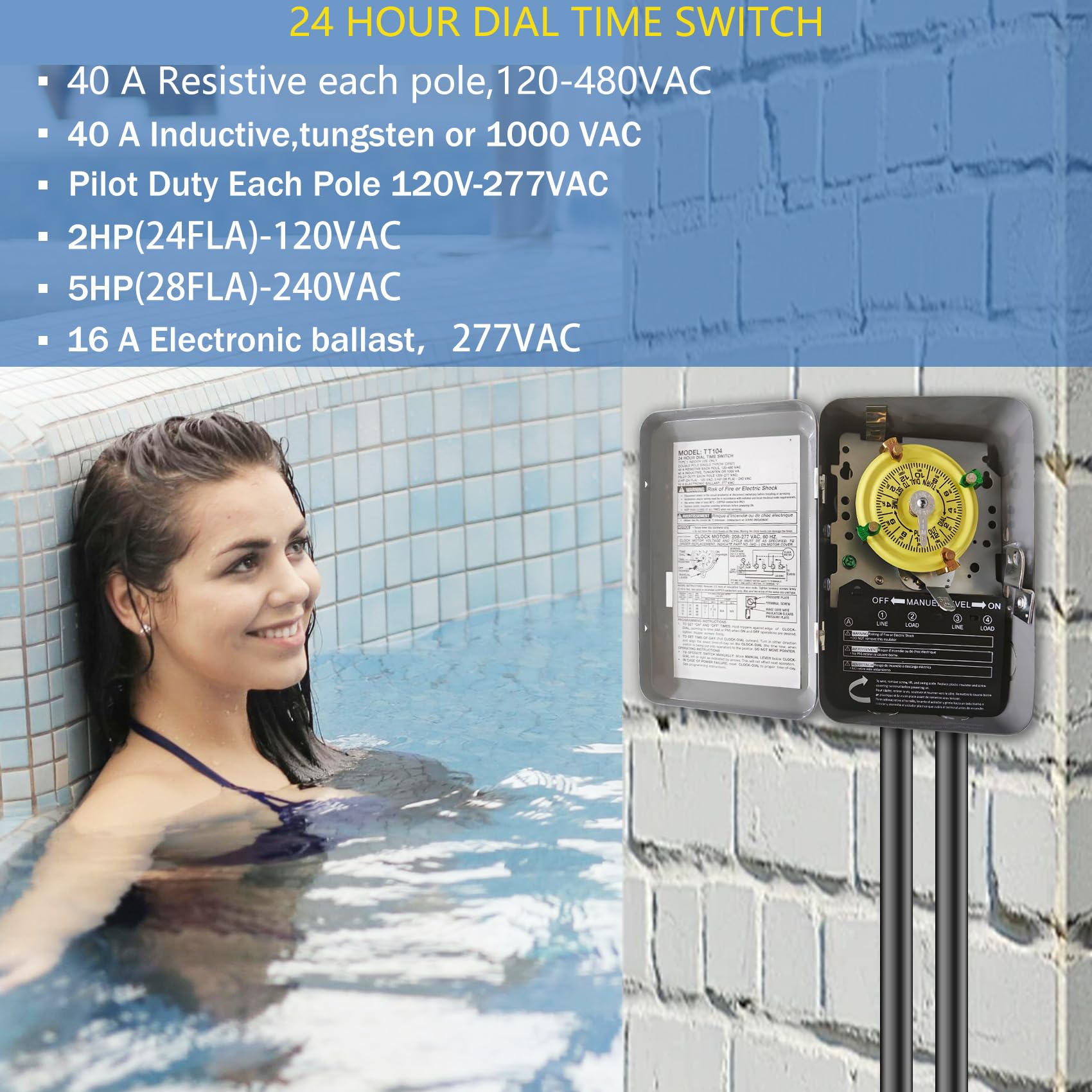

• Rated for heavy-duty loads up to 40A on 208–277VAC systems.

What scheduling precision and control does this mechanical time switch offer?

The T104M provides a 24-hour mechanical dial marked in 15-minute increments and supports up to 12 on/off events per day. A manual override allows temporary on/off control and the motor-driven drive keeps time accurately for morning and evening cycles.

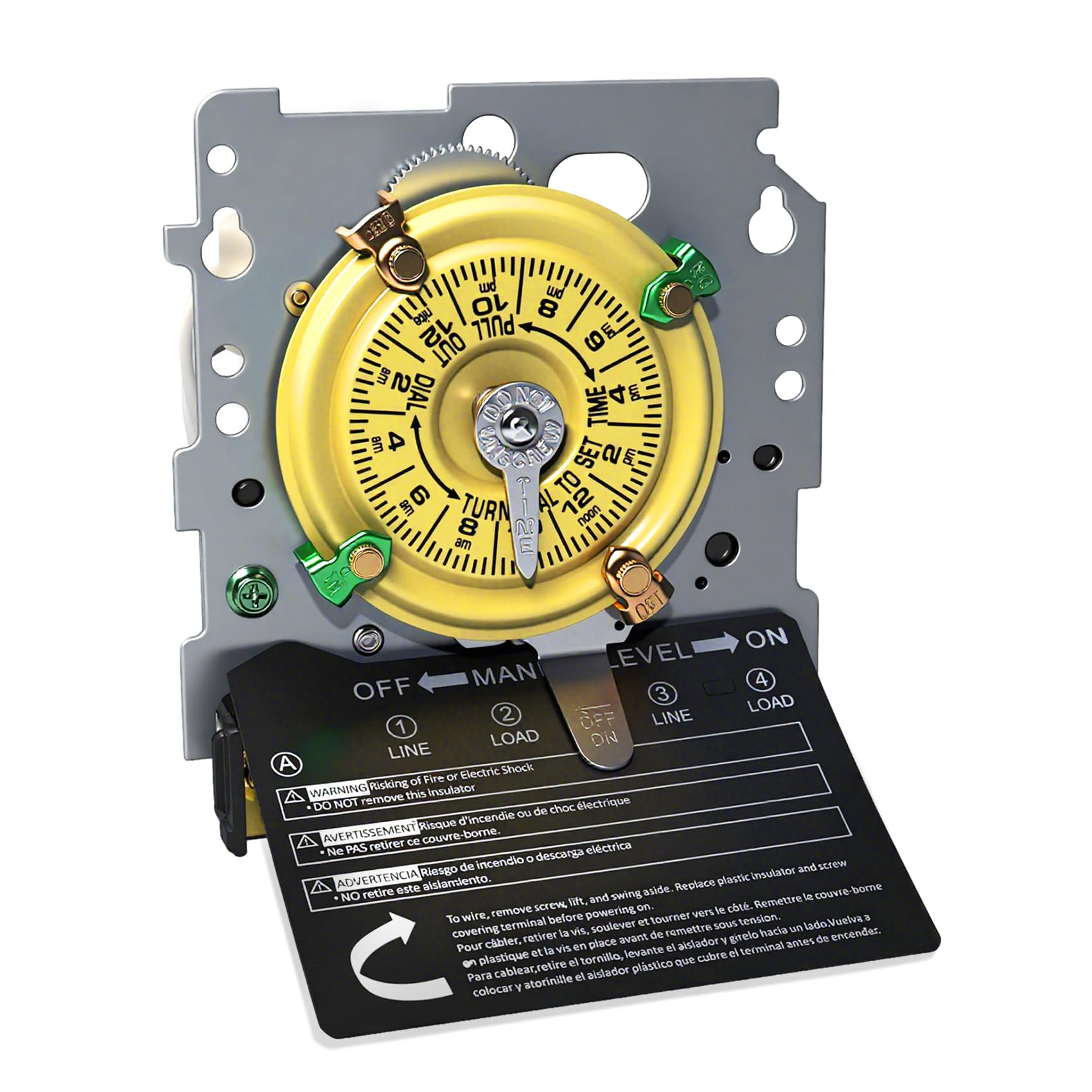

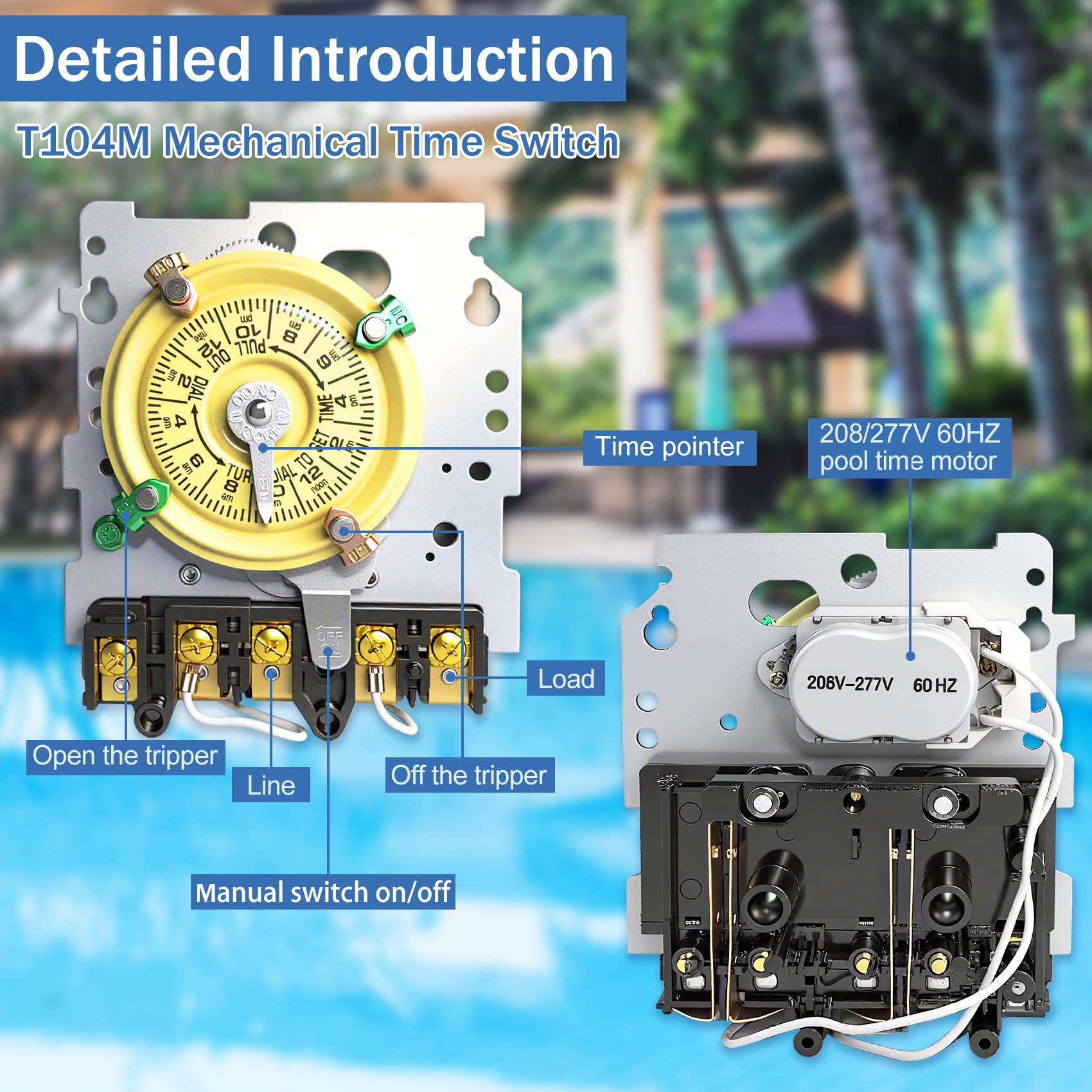

• 24-hour dial with 15-minute interval markings for fine scheduling.
• Up to 12 ON/OFF cycles daily; minimum run time approximately one hour.
• Manual day/night switch for temporary or seasonal changes.
• DPST dual-circuit control for two independent outputs or combined loads.

How easy is installation and replacement of an old timer with the T104M?

Bxmgr provides a clear wiring diagram and step-by-step installation guide; swapping the timer typically takes under ten minutes for a standard replacement. Terminals are labeled for line, load, neutral and ground to simplify reconnection, and the physical size fits most outdoor timer enclosures.

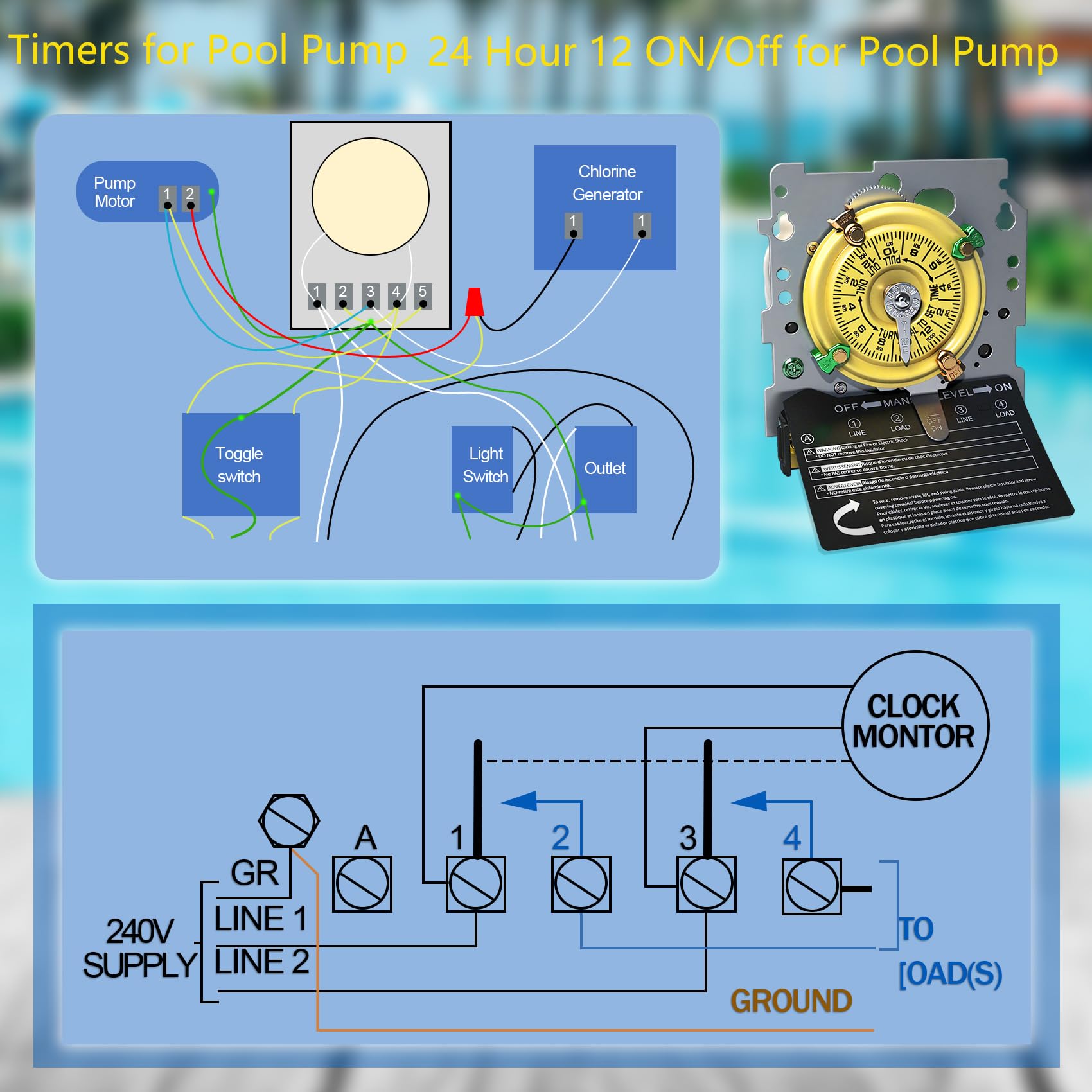

• Detailed manual and wiring diagram included for quick reference.
• Clear terminal labeling for line, load, neutral and ground connections.

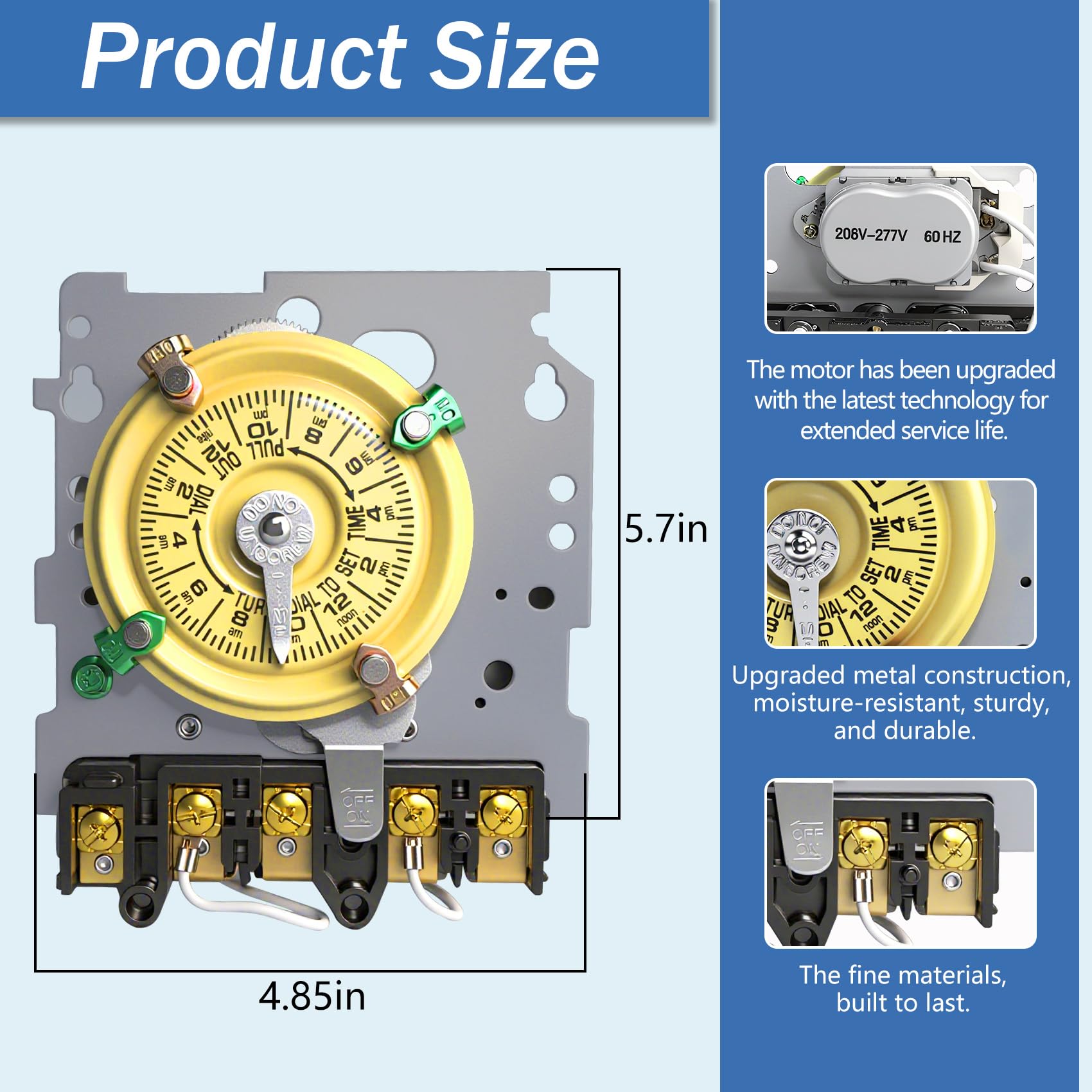

• Compact form factor compatible with common waterproof boxes.
• Photo-replaceable: recommended to photograph old wiring before removal.

Will the T104M replace older or discontinued timer models?

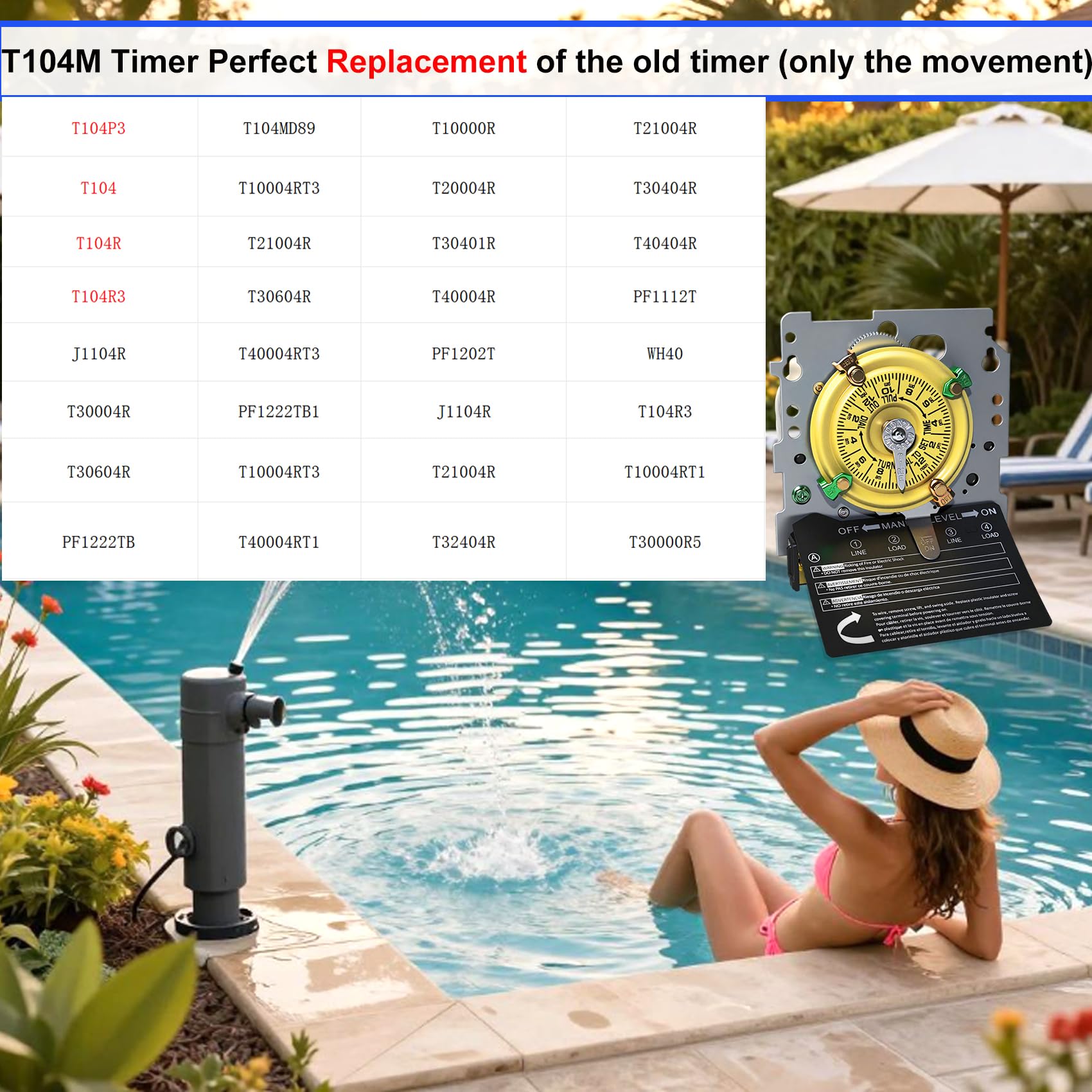

The T104M is designed as an upgraded replacement for many older heavy-duty pool and outdoor timer movements. Bxmgr lists numerous compatible legacy model numbers and offers customer support to confirm fitment for unusual configurations.

• Compatible with a wide range of legacy heavy-duty models (listed in product materials).
• Supports outdoor, metal-shell timer housings and outdoor-rated installations.
• Customer support available to verify replacement fitment before installation.
• Five-year warranty and post-sale assistance for installation or replacement issues.

Who is this for: The Bxmgr T104M pool timer mechanism is aimed at pool service professionals, commercial pool operators, and homeowners who need a rugged, mechanical replacement for failed or aging timer movements. It fits installations requiring 208–277VAC, up to 40A load handling, and those who prefer a straightforward, serviceable mechanical control rather than electronic timers. If you operate pumps, lighting, or other timed pool equipment and want a durable, field-replaceable timer backed by a five-year warranty and accessible customer support, the T104M is built for that use.
