AP APPLI PARTS Motor Start Capacitor 650–780 µF, 110–125 VAC — CD60 UL Certified, PCB-Free (1.75" x 4.38")

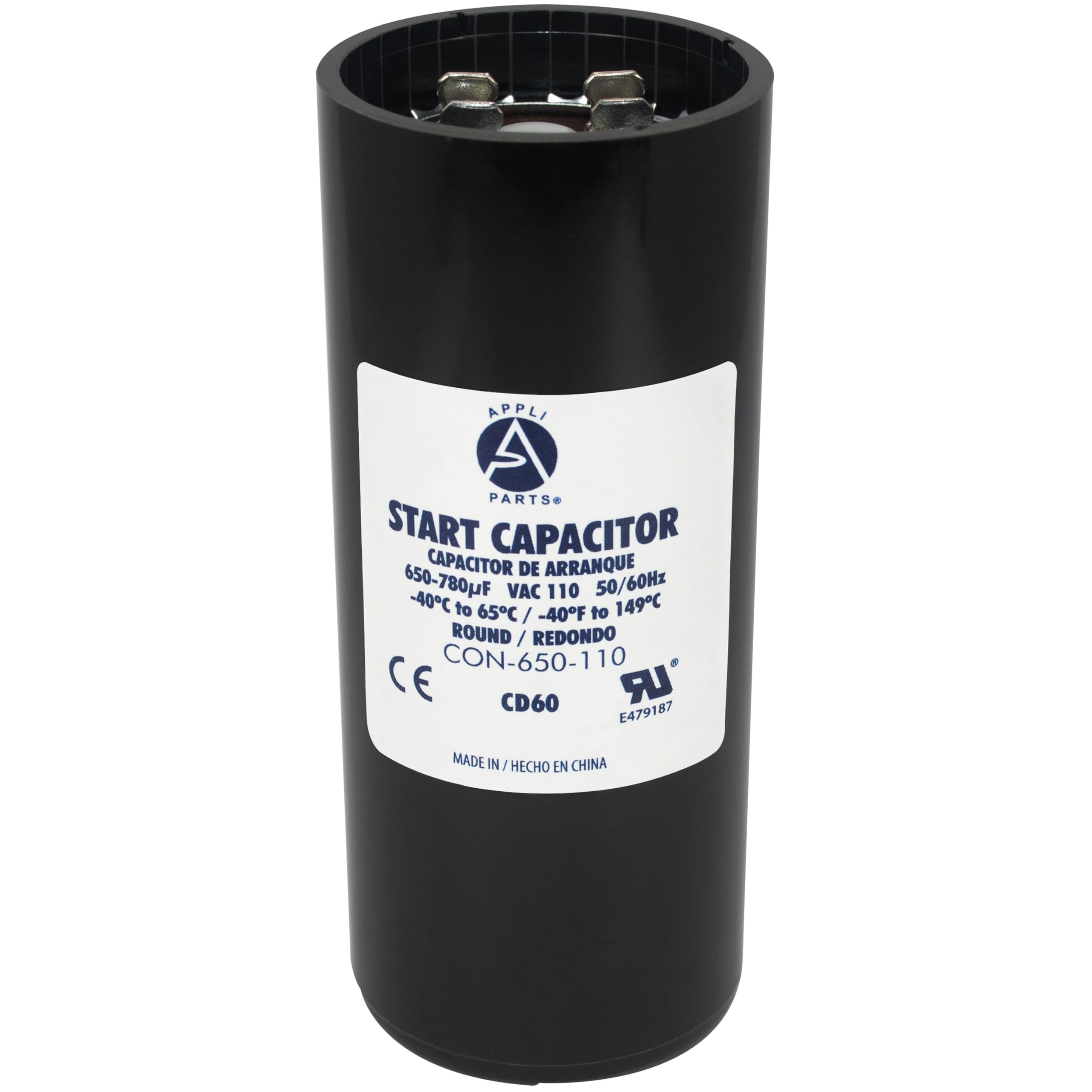

APPLI PARTS CON-650-110 is a universal CD60 motor start capacitor rated 650–780 µF for 110–125 VAC electric motor starting applications.

This heavy-duty start capacitor is built to deliver the burst of extra torque a single-phase motor needs at startup. Designed as a drop-in replacement for capacitors with the same capacitance and voltage range, it follows UL-certified CD60 construction and is PCB-free for safer operation. Before installing, confirm the physical dimensions, tolerance and terminal type match your original part.

How will this capacitor help my motor start more reliably?

The CON-650-110 supplies a high transient capacitance that increases starting torque for a few critical seconds when the motor first energizes. Its intermittent-duty design is optimized to engage briefly during startup, then remain out of circuit during normal running conditions. Use it where a start capacitor is specified to overcome load inertia or to restart under heavy load.

• Start range: 650–780 µF nominal capacitance for strong initial torque
• Voltage: compatible with 110–125 VAC single-phase systems
• Intermittent duty (CD60 type) suited for short start intervals

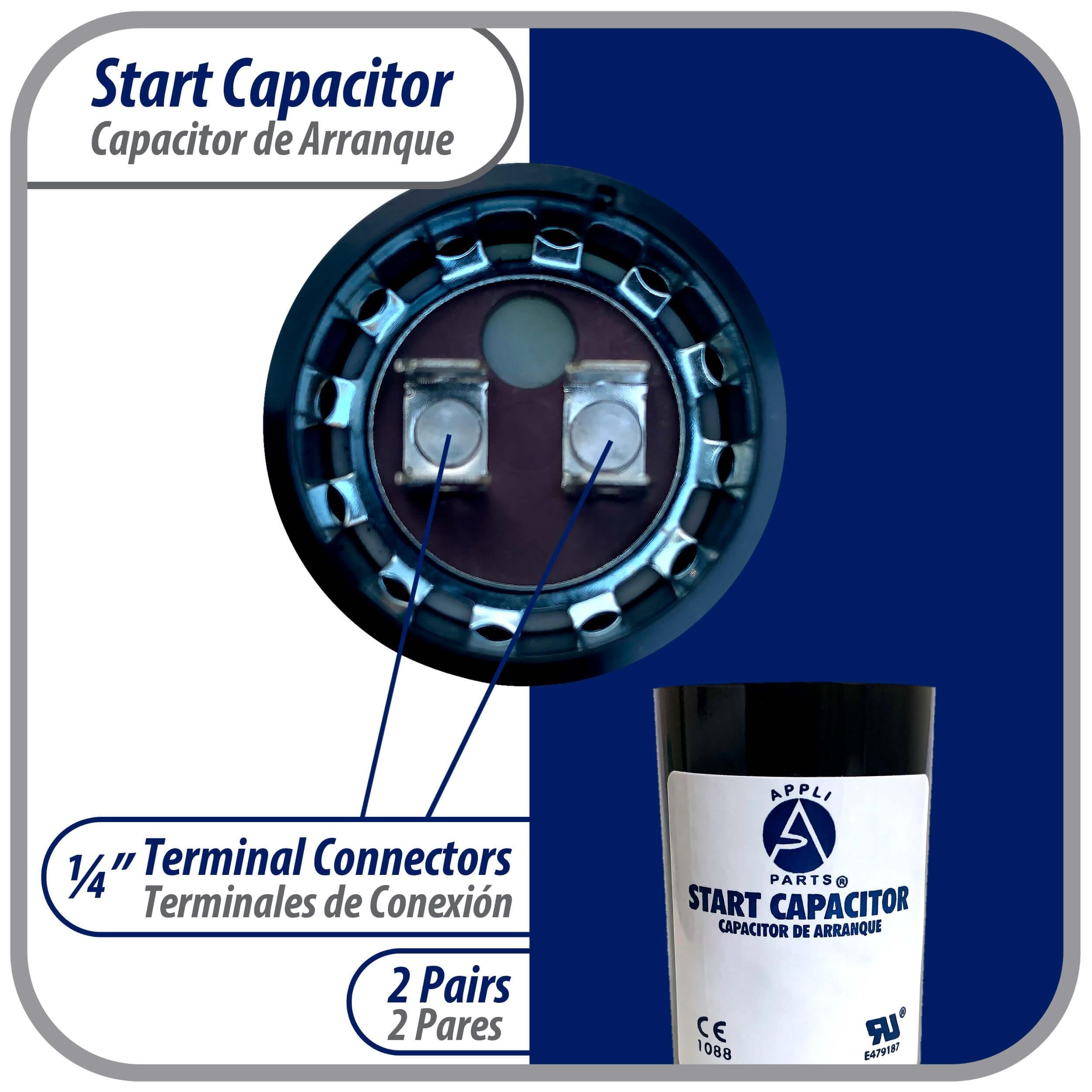

• 1/4 in male quick-connect terminal for common motor leads

Will this replace the capacitor already in my pump, compressor, or saw?

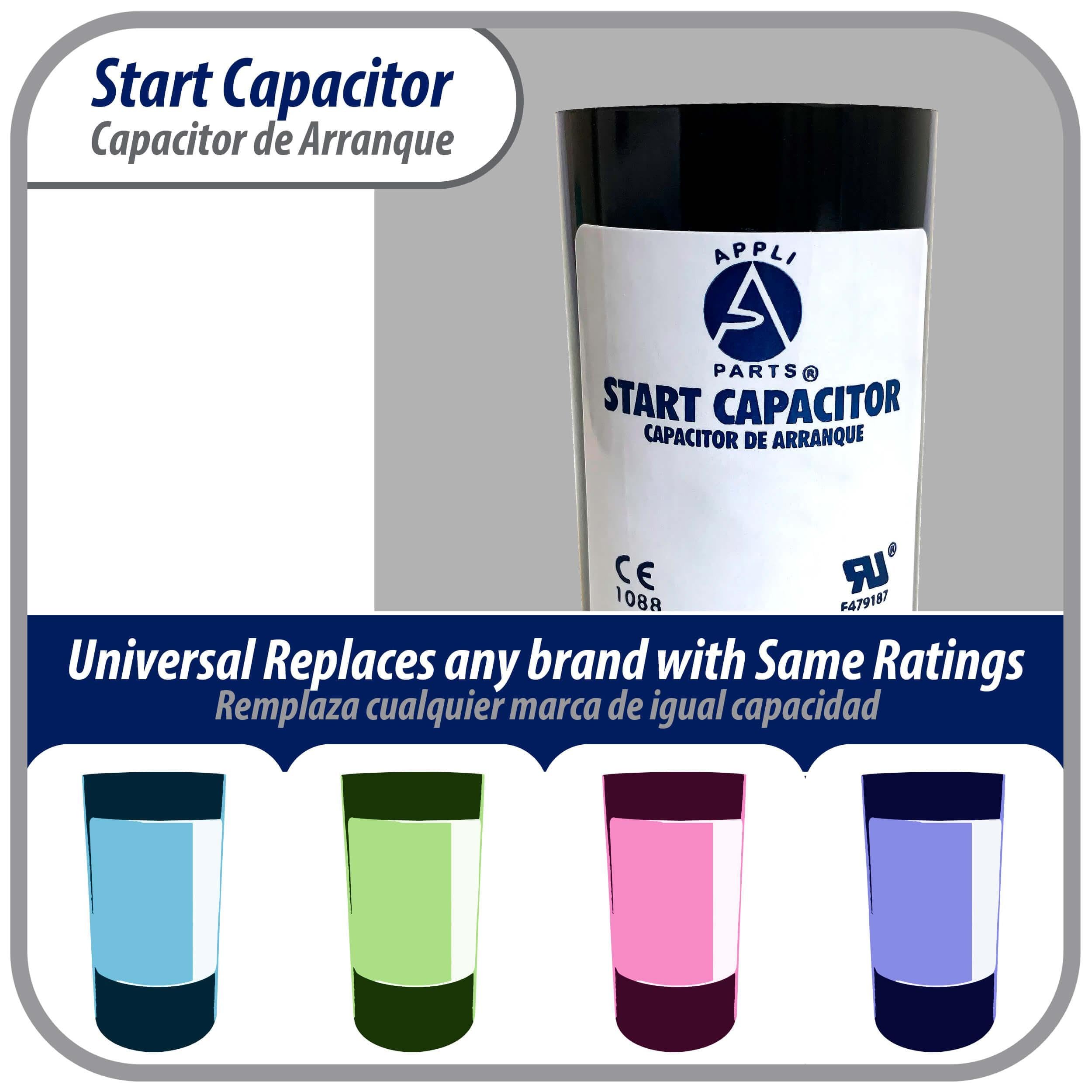

Yes, provided the original capacitor has matching capacitance, voltage rating and terminal style. This unit is intended as a universal replacement that fits many brands when specifications align. Always compare dimensions and tolerance to ensure proper fit and electrical compatibility.

• Direct replacement for parts with 650–780 µF at 110–125 VAC
• Physical size: 1.75 inches wide by 4.38 inches tall—measure for clearance
• Tolerance: ±20% — verify acceptable range for your equipment
• Terminal: 1/4 inch male quick-connect — check connector type on motor

What safety and durability features does this capacitor include?

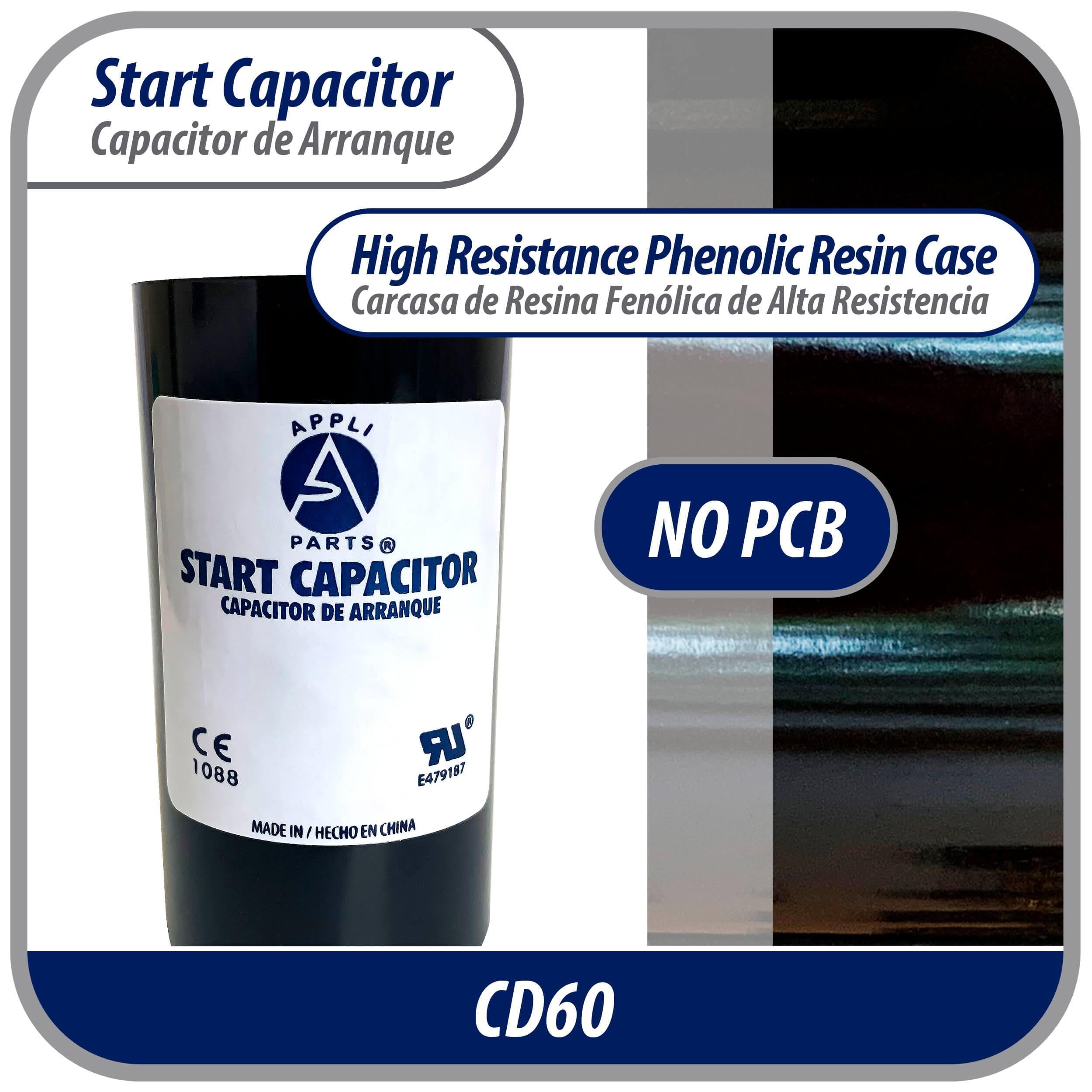

This capacitor is manufactured to CD60 specifications and carries UL certification (E479187), indicating it meets recognized construction and testing standards for motor capacitors. It is PCB-free and rated to operate across a wide temperature range, reducing risk of early failure in varied environments. Still, handle and install it following electrical safety practices to avoid shock or damage.

• UL certified (E479187) and CD60 electrolytic, non‑polarized design
• PCB-free construction for safer environmental profile
• Operating range: -40°F to +149°F (suitable for many indoor/outdoor installations)

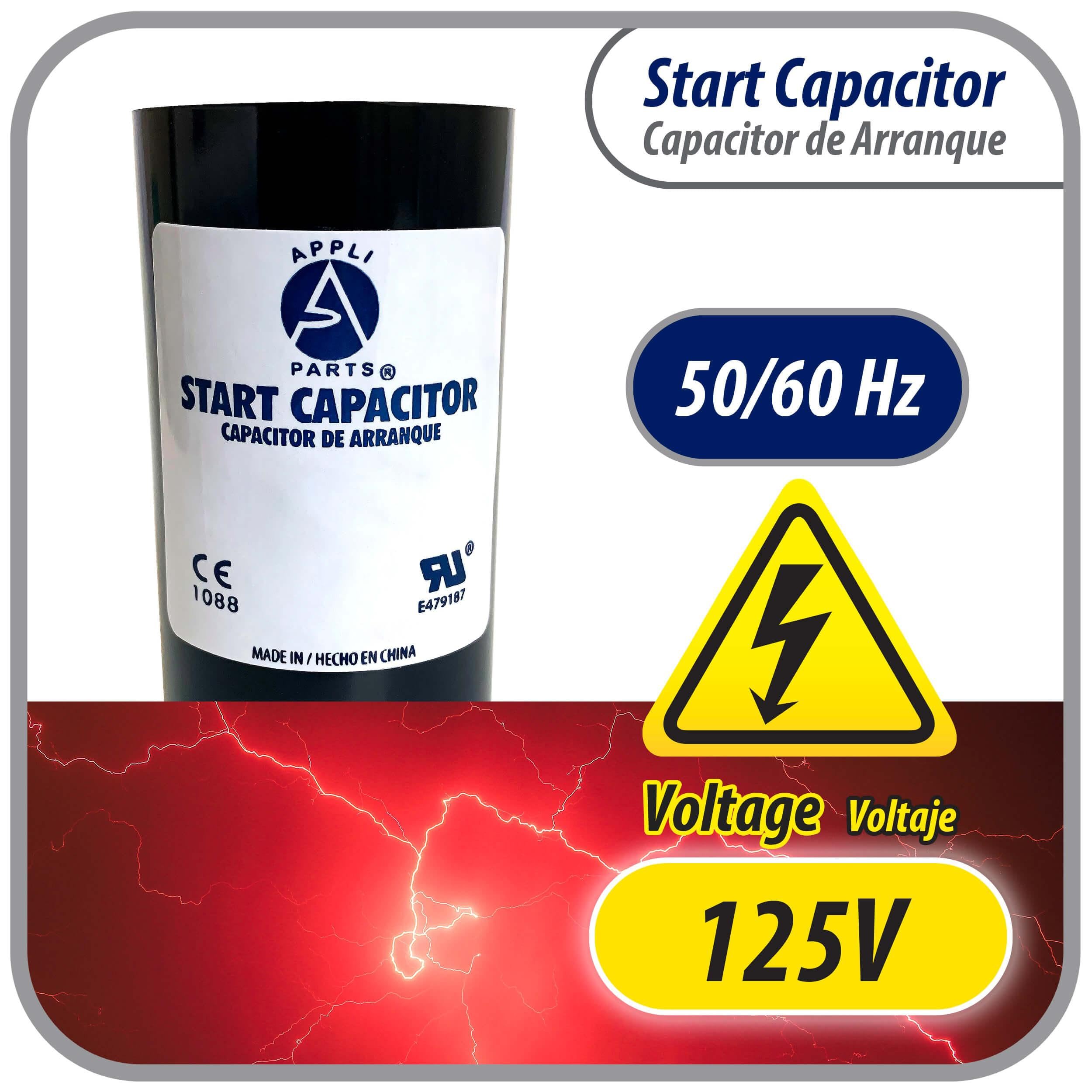

• Rated for 50/60 Hz service and intermittent start duty

How do I verify fit and install this safely?

Confirm voltage, capacitance, terminal type and dimensions match your original capacitor before installation. Disconnect power, discharge the old capacitor properly, and use insulated tools when removing or attaching quick-connect terminals. If you are unsure, consult a qualified technician to prevent damage or electrical hazard.

• Compare label: 650–780 µF and 110–125 VAC ratings must match
• Measure clearance: 1.75" width x 4.38" height to ensure fit
• Use insulated gloves and discharge tool when replacing
• Consider professional help for motors in critical or high-voltage systems

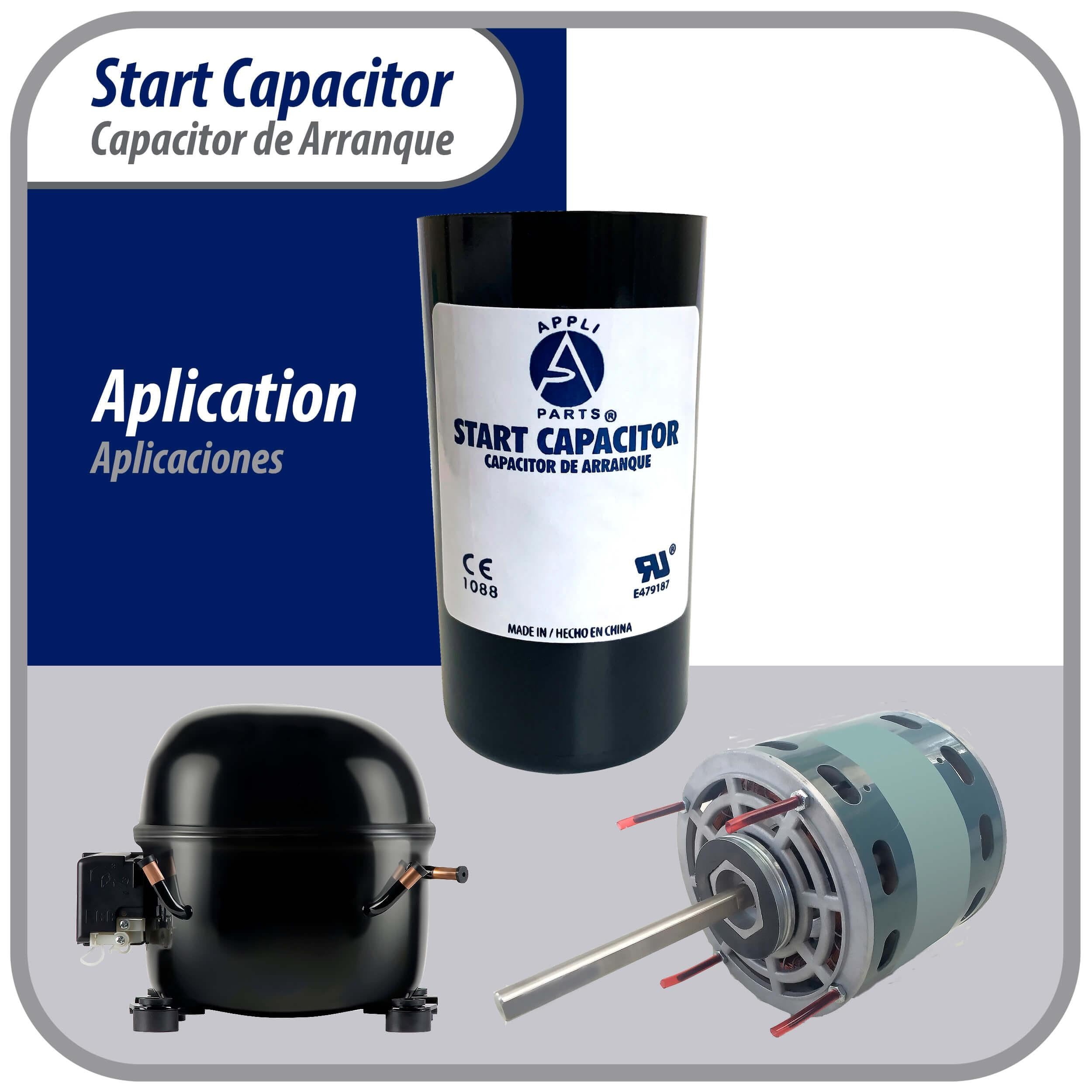

Who is this for: The APPLI PARTS CON-650-110 is intended for homeowners, installers and repair technicians who need a reliable start capacitor for single-phase motors in applications such as water and pool pumps, compressors, table saws and other general-purpose equipment. It's best for projects where the replacement must match capacitance, voltage and terminal style while meeting UL and CD60 safety standards.
