Alliance CAD Bond Wide-Format Paper Rolls 24" x 150' — 4-Pack, 20 lb, 2" Core for Crisp CAD Prints

Alliance 24" x 150' CAD Bond Rolls are 20 lb wide-format inkjet papers sold as a 4‑roll pack with 2" cores, engineered for crisp CAD prints and reliable handling.

These Alliance CAD bond rolls give architects, engineers, repro shops and print service providers a consistent, economical substrate for line drawings, plans and technical prints. The 20 lb weight provides a balance of opacity and flexibility so sheets feed smoothly through large-format inkjet plotters while maintaining legible lines and scanned readability. Each roll measures 24 inches wide by 150 feet long and ships untaped in cartons of four, optimized for bulk projects and frequent print cycles.

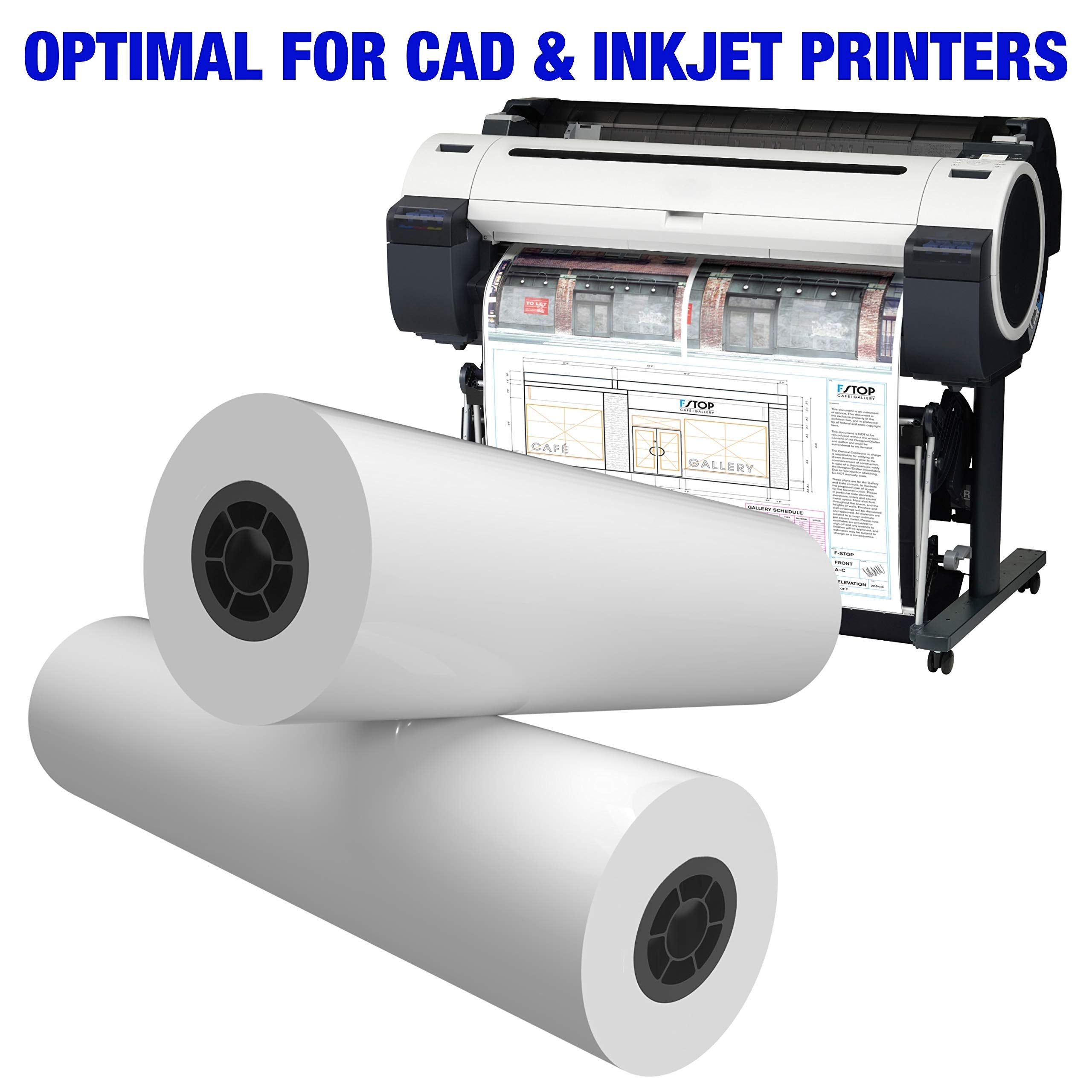

How does this paper perform with wide-format inkjet plotters?

The bond formula is calibrated for inkjet CAD workflows to minimize feathering and preserve fine-line detail. Its surface accepts pigment and dye-based inks commonly used in architectural and engineering printers, producing sharp vector lines and readable text. Consistent roll winding and a true 2" core keep feeding reliable across compatible plotters.

• OEM-level moisture control to reduce curl and feeding issues
• 20 lb basis weight for steady media transport and handling
• Works with pigment and dye ink wide-format printers

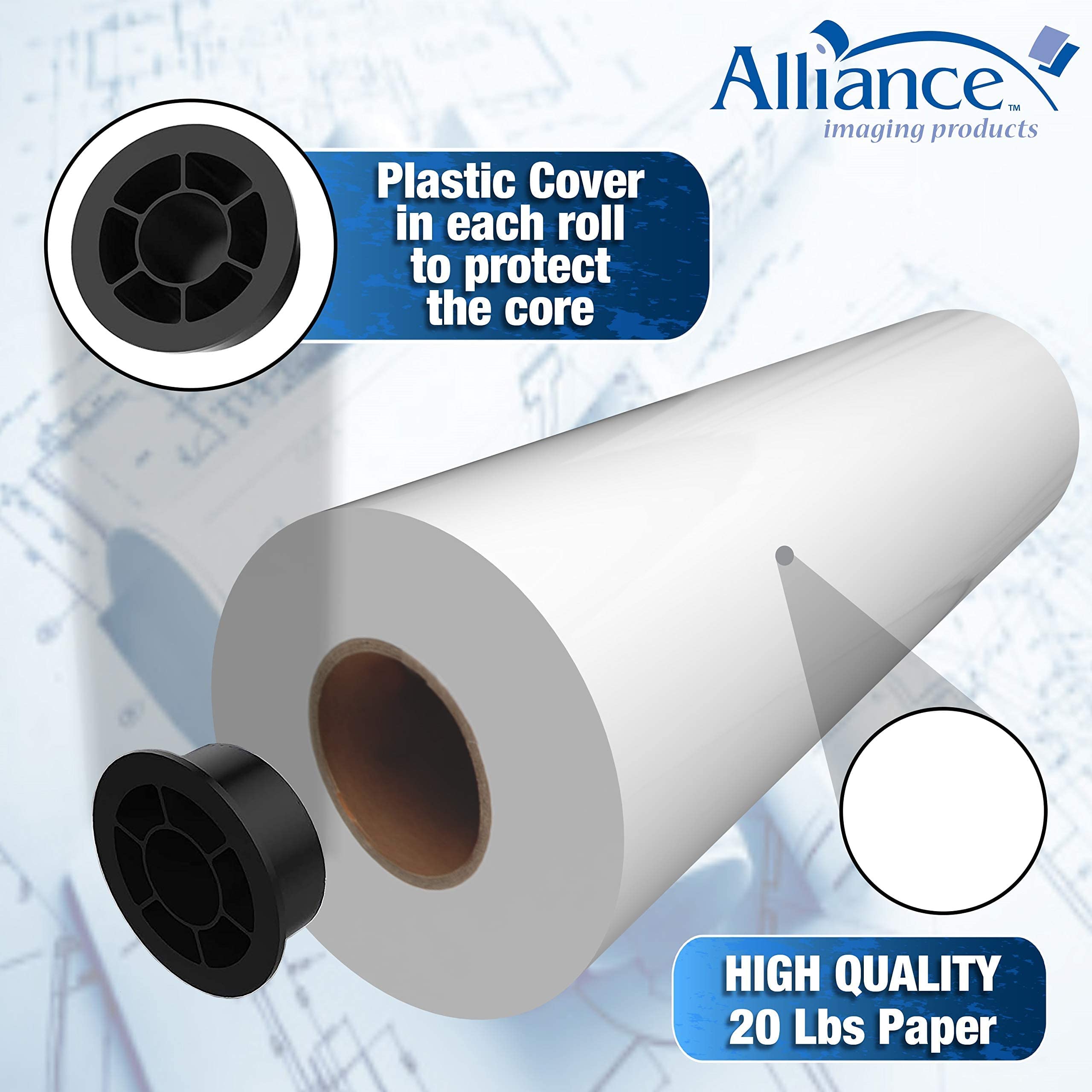

• True 2" core fits standard plotter arbors

What print jobs are best suited to these CAD bond rolls?

These rolls are ideal for linework, monochrome plans, schematics, diagrams and proofs where clarity and dimensioning accuracy are important. They’re not intended as coated photo media, so they’re best used for technical documentation rather than photographic prints. Because each roll is long and economical, they’re especially useful for high-volume sets and continuous runs.

• Architectural and engineering blueprints, plans, and elevations
• Construction documents and permits
• Drafting output, schematics, and CAD plotting
• Proofing and reproducible technical copies

How do I store and handle the rolls to keep print quality steady?

Store rolls flat or standing on end in a cool, dry area away from direct sunlight and extreme humidity. Keep the original packaging until use to preserve moisture equilibrium and prevent edge damage. When loading, confirm the 2" core seats smoothly in the plotter spindle to avoid skew or misfeeds.

• Ideal storage: 50–75°F and 30–50% relative humidity
• Keep rolls untaped until installation to prevent adhesive marks
• Load with the printed-side orientation recommended by your printer
• Handle by the core to avoid touching the printable surface

What are the key specifications and carton details?

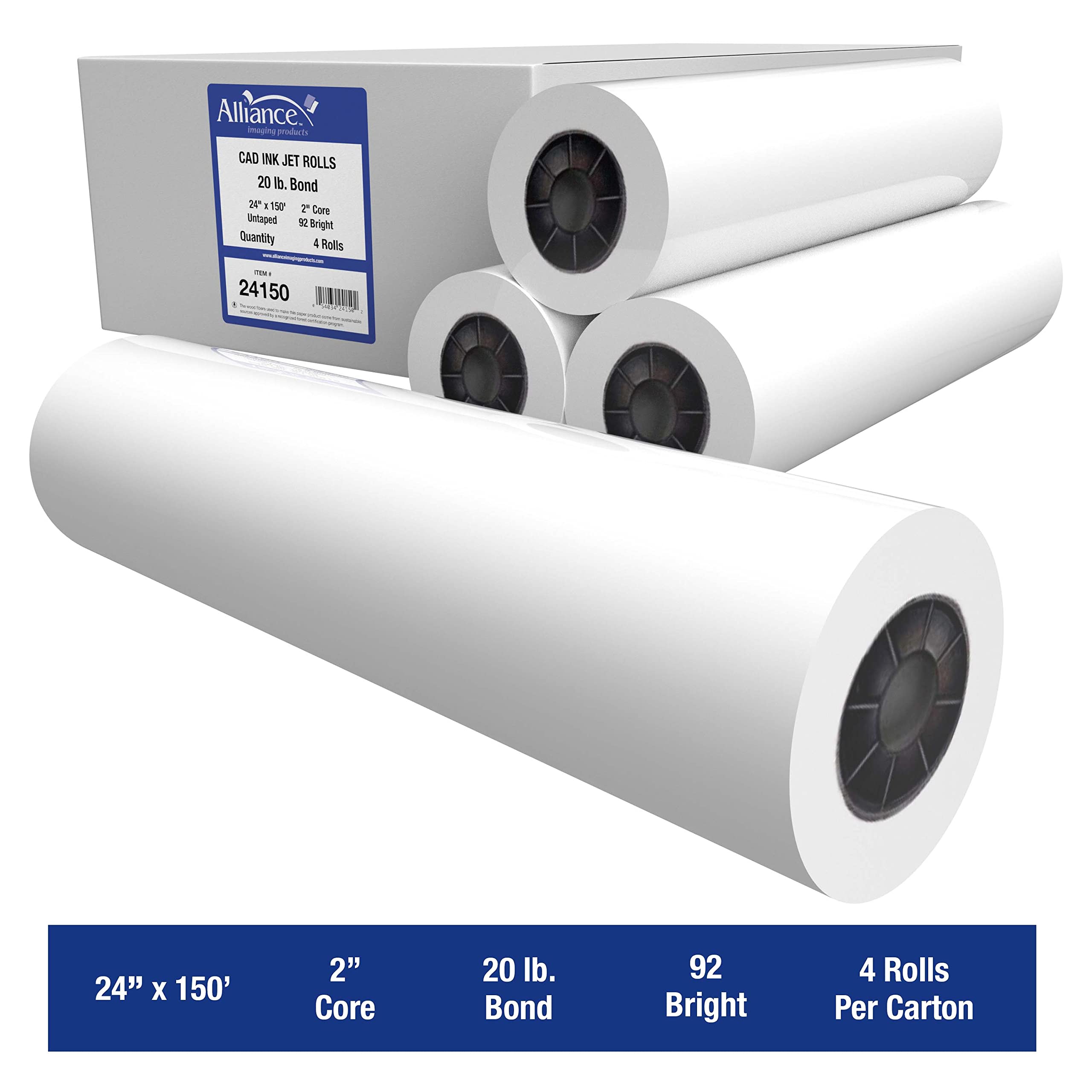

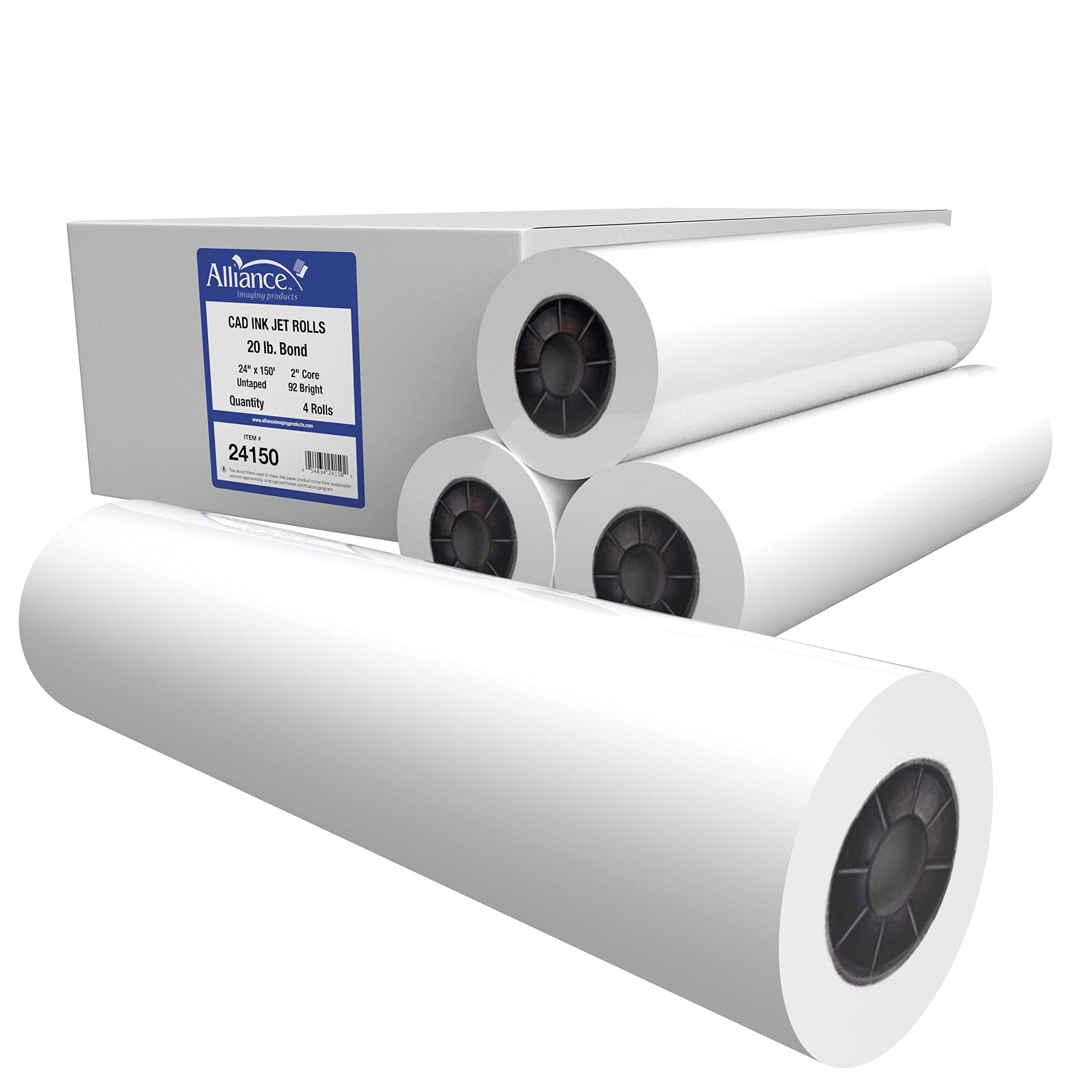

Each carton contains four untaped rolls, each 24 inches by 150 feet, on a 2-inch core. The 20 lb bond weight provides a standard thickness suitable for most CAD and technical print tasks without adding excess bulk. Alliance quality control ensures consistent moisture and winding for repeatable performance across the carton.

• Roll size: 24" x 150' (61 cm x 45.7 m)
• Basis weight: 20 lb bond

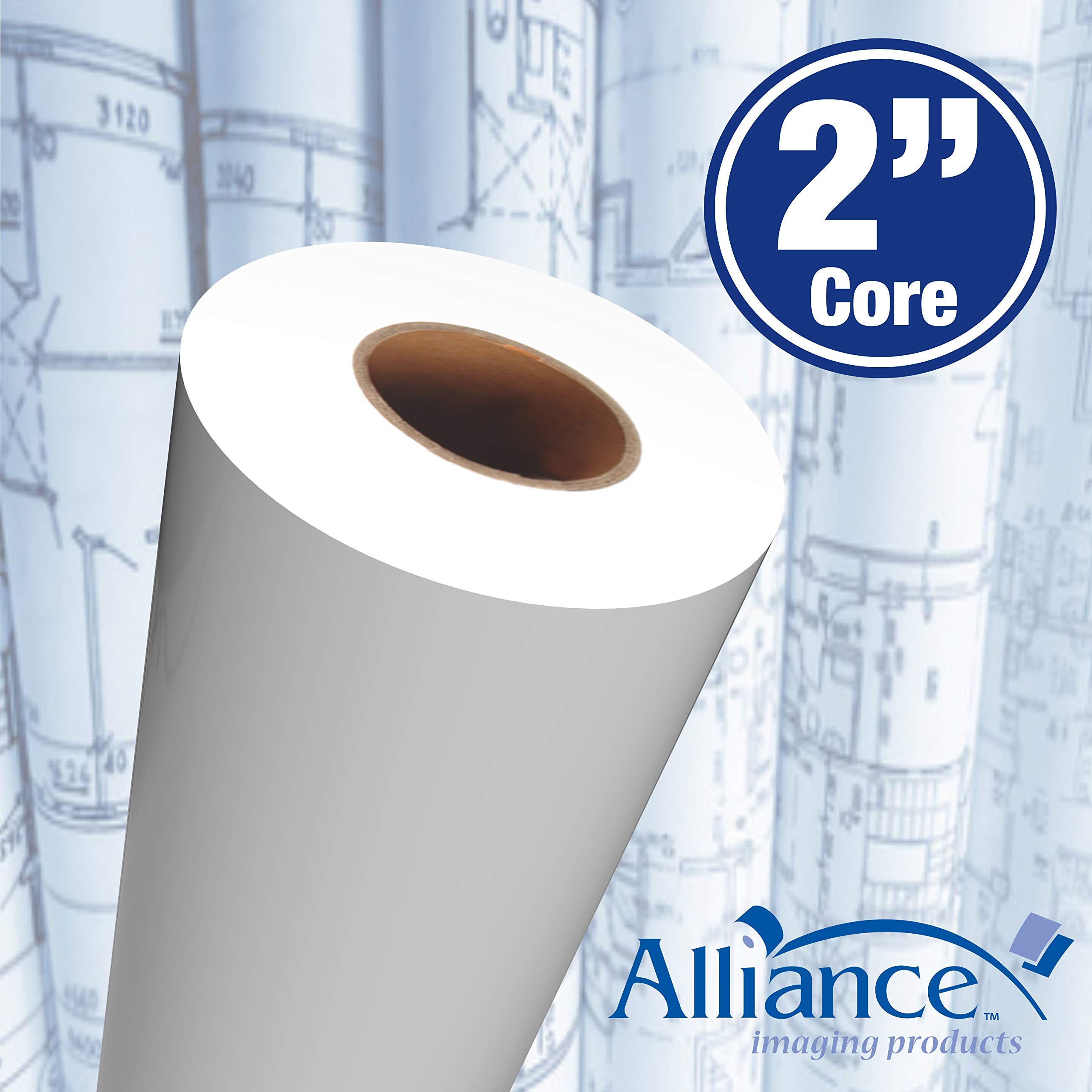

• Core diameter: 2" (standard plotter core)
• Pack: 4 rolls per carton, untaped

Who is this for: Designers, architects, engineers, reprographics shops and print service providers who need a dependable, cost-effective wide-format bond for CAD and technical output. If you require high-volume plotting with predictable feed and clean line reproduction—without the price of specialty coated media—these Alliance 24" x 150' CAD bond rolls are a practical choice.
